Oven Company

MODEL AC-500

Vertical Fired Gas Convection Oven with Extra Capacity

Standard depth, extra height baking compartment - accepts up to eight 18"X26" standard full size baking pans in front-to-back positions.  All data is shown per oven section, unless otherwise indicated.

EXTERIOR CONSTRUCTION

  • Full angle iron frame
  • Stainless steel exterior
  • Stainless Steel door with glass and 180 degree range of motion
  • 25" (635mm) stainless steel legs (for single unit)
  • Chrome plated single stage door latch
  • Modular slide out front control panel
  • Solid mineral fiber insulation at top, back, sides and bottom

INTERIOR CONSTRUCTION

  • Eight chrome-plated racks, seventeen rack positions with a minimum of 1-5/8" (41mm) spacing
  • Double-sided porcelainized baking compartment liner (14 gauge)
  • Induced back draft blower wheel

OPERATION

  • Vertical fired gas system with burners in side compartment
  • Pilot ignition control system
  • Four removable in-shot burners
  • Pressure regulator and manual gas service cut-off valve located in front control area.
  • Flue vent at rear of each section
  • Solid state thermostat with temperature control range of 200 F (93 C) to 500 F (260 C)
  • Two speed fan motor
  • 3/4 HP blower motor with automatic thermal overload protection
  • control area cooling fan
  • Two motor compartment cooling fans

STANDARD FEATURES


OPTIONS AND ACCESSORIES
  • Legs/casters (for single model):
    • 25" (635mm) stainless steel legs with 4-1/4" (108mm) casters
    • 25" (635mm)stainless steel legs with 6" casters (adjustable)
  • Low profile adjustable casters (for double unit)
  • Stainless steel stand with rack guides
  • Extra oven racks
  • Gas hose with quick disconnect and restraining device:
    • 48" (1219mm) hose
    • 36" (914mm) hose
  • Gas manifold (for double sections)
  • Solid stainless steel door
  • Solid State Digital Control
  • Intellplus Control
  • Extended Warranty

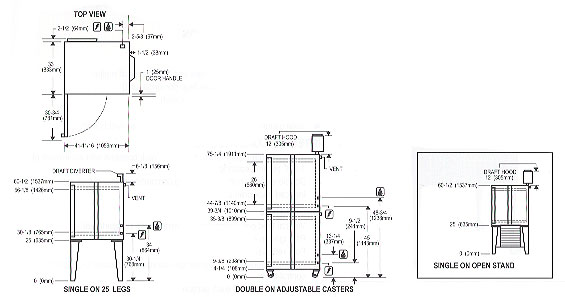

DIMENSIONS
Floor Space 41-11/16" W X 33" L
Product Clearance 2" from rear and left side and 0" from right side
Interior 27" W X 29-1/4" H X 28-7/8" D
If oven is on adjustable casters add to all height dimensions: 1-3/4"
GAS SUPPLY 3/4" IPS connection at rear of oven
Manifold Pressure *Natural - 3.5" W.C. min. - 11" W.C. max
Inlet Pressure *Natural - 4.5" WC min. - 11" WC max
*Propane - 10.5" WC min - 13.0" WC max
MAXIMUM INPUT:
AC-500 Single 70,000 BTU/hr
AC-500 Double 140,000 BTU/hr
POWER SUPPLY:
3-wire, 13 Amp, 120 VAC, 1 phase, 60 Hz.
3/4 HP, 2 speed motor, 1140 and 1725 RPM
6' (1.7m) electric cord set furnished on 120 VAC ovens only
*Each unit requires a dedicated 20 amp circuit.
MINIMUM ENTRY CLEARANCE:
Uncrated 33-3/4" (857mm)
Crated 39" (990mm)
COMBUSTIBLE WALL CLEARANCE
Right Side 0"
Rear & Left Side 2"
SHIPPING INFORMATION
Single 526 lbs Crated
Double 1052 lbs Crated
Crate Size 52" X 39" X 41"
