Model
BM-36

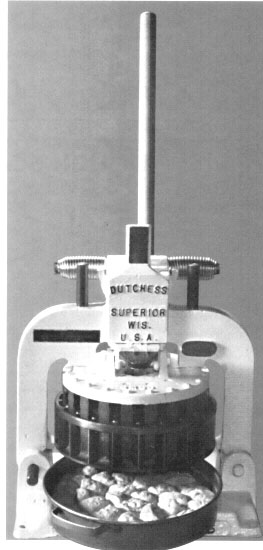

This Bench Model Dough Divider is available only
in 36-part, capable of scaling dough into 36 pieces, ranging in
weight from 1-ounce up to 4-ounces each. "Factory
- Direct Buying . . . Savings!" Bench
Model DOUGH DIVIDER
Operation
of the Dutchess bench
model Dough Divider is simple and its performance
accurate.
Dust the
stainless steel pan lightly with flour, and place the
dough piece to be divided into the pan. Place the
stainless steel pan into the Dutchess Dough Divider,
under the dividing head, and pull the operating handle
down. This flattens and distributes the dough evenly
across the bottom of the pan.
Springing
the trip lever will release the stainless steel knives,
and the operating handle can be pulled down all the way,
bringing the stainless steel knives through the dough to
the bottom of the pan, thus dividing the dough into
equal parts.
Raise the
operating handle, and the spring action will hold the
cutting head up, allowing the removal of the pan with
the 36 evenly scaled pieces of dough.
Dutchess
Bench Dividers are built
with precision fitted cutting heads, any part of which
may be replaced in event of accidental breakage. |
 |
Specifications
Model
BM-36
| Cuts |
36 Pieces |
| Dividing/Scaling
Range |
36-part, 1 oz. to 4 oz. pieces (28
gr. to 112gr)
(Scaling range may vary due to
dough development and/or Viscosity.) |
| Machine Dimensions |
17" X 23" X 29" (43
cm X 58 cm X 74 cm) |
| Machine Weight |
177 Lbs. (80.3 kg.) |
| Machine Shipping
Weight/Boxed |
189 Lbs. (85.7 kg.) |
| Volume Boxed for
Shipping |
5-1/2 cu. ft. (.16 cu. m.) |
Unit comes equipped
with one stainless steel pan. Additional
pans and portable stand are available.
| Additional
Pans |
Model BM-17A (Stainless
Steel)
Model BM-17 (Plain Steel) |
| Portable
Stand |
BM-105 |
AAAAAADough
Scaling Examples
Weight of Large Dough
Piece
to be Put Into Pan For Dividing |
Equals 36 Pieces Each Weighing |
| 2lbs., 4 oz. (1008
gr.) |
1 oz. (28 gr.) |
| 2lbs., 13 oz. (1260
gr.) |
1-1/4 oz. (35 gr.) |
| 3lbs., 6 oz. (1512
gr.) |
1-1/2 oz. (42 gr.) |
| 3lbs., 15 oz. (1764
gr.) |
1-3/4 oz. (49 gr.) |
| 4lbs., 8 oz. (2016
gr.) |
2 oz. (56 gr.) |
| 5lbs., 1 oz. (2268
gr.) |
2-1/4 oz. (63 gr.) |
| 5lbs., 10 oz. (2520
gr.) |
2-1/2 oz. (70 gr.) |
| 6lbs., 3 oz. (2772
gr.) |
2-3/4 oz. (77 gr.) |
| 6lbs., 12 oz. (3024
gr.) |
3 oz. (84 gr.) |
| 7lbs., 5 oz. (3276
gr.) |
3-1/4 oz. (91 gr.) |
| 7lbs., 14 oz. (3528
gr.) |
3-1/2 oz. (98 gr.) |
| 8 lbs., 7oz. (3778
gr.) |
3-3/4 oz. (105 gr.) |
| 9 lbs.,(4032 gr.) |
4 oz. (112 gr.) |
|
