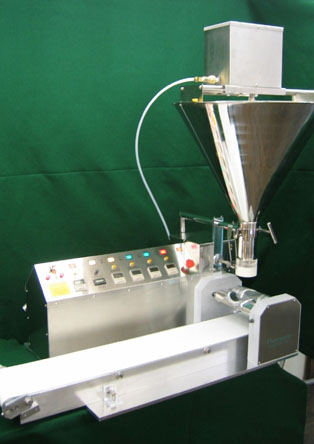

PieMaster Model SA-21 Semi-Automatic Turnover Machine
PieMaster Model SA-21 Semi-Automatic Turnover Machine
This Item Ships (1) Each Common Carrier Directly From MFG.
Shipping Weight: 410 lbs.
Usually Ships Within 2-4 Weeks From Date of Order/PMT
Limited International Delivery Available at Additional Charge
$26,000.00
Product Description
PieMaster Semi-Automatic Turnover Machine
Model SA-21
The Model SA-21 PieMaster ™ has these unique features:
-
USDA Approved.
-
Up to 1500 turnovers per hour continuous production capability.
-
Strong, all metal, super shock resistant frame of Stainless Steel and Food Grade Aluminum.
-
Table mounted assembly for small foot print with big production capacity.
-
10 gallon (37.9 liters) stainless steel cone shaped hopper to contain fillings.
-
Electronic control panel that sets and controls the filling cycle and as well as all other mechanical functions.
-
A conveyor with a federally approved endless belting that is without open seams.
-
Works with many types of dough: pastry, yeast, noodle, modified corn, yeast, breads, etc.
-
Great for products that will be baked, fried, boiled, or frozen.
-
Easy 10-15 minute cleanup. Can be disassembled without tools for cleanup.
-
Computerized Timers and Control systems.
-
Modular Construction permits fast, easy change out of system mechanical and electrical components.
-
Each PieMaster machine comes with one mold set of your choosing. Specify which mold set you would like when ordering. Additional mold sets are available for an additional cost.
Specifications:
-
Length: 48 in (1221 mm) with conveyor ● Width: 30 in (763 mm) ● Height: 48 in (1221 mm)
-
Shipping Weight: 410 lbs (186.4 kg) ● Packaged Cube: 46.3 cu. Ft. (1.31 cu. Meter)
-
Crated dimension: 38in x 34in x 62in (965mm x 8641mm x 1575mm)
-
115v/230v ● 50/60 Hz ● < 2 amps ● 80-120 psi air supply required
CALZONES ● EMPANADAS ● JAMAICAN PATTIES ● FRUIT PIES
OR ANY VARIETY OF FOLDED PIES
!["Various]("http://www.piemaster.com/images/molds/mold_shapes.gif")
Each PieMaster machine comes with one mold set of your choosing. Specify which mold set you would like when ordering. Additional mold sets are available for an additional cost. Now 26 Sizes to Choose From. |
| Part # | Mold Size | Capac. oz (gm)
filling & dough before cooking |
Length, in (mm) | Width, in (mm) | Depth, in (mm) | |
| 21T719 | 1/2 Rnd-Dble | 1/2oz (14gm) | 2-3/8 (60.3) | 1-1/2 (38.1) | 0-5/8 (15.9) | |
| 21T702 | 1 Dbl Square | 1 oz (28 gm) | 2 (50.8) | 2 (50.8) | 5/8 (15.9) | |
| 21T701 | 1 Half Rnd | 1 oz (28 gm) | 3-5/8 (92.1) | 2 (50.8) | 1-1/8 (31.7) | |
| 21T732 | 1.2 HR Dble | 1.2 oz (40 gm) | 2-3/4 (60.8) | 2 (50.8) | 1 (12.7) | |
| 21T728 | 1+ Half Rnd | 1.5 oz (42 gm) | 3-7/8 (100) | 2 (50.8) | 1/2 (12.7) | |
| 21T705 | 2 Dbl Square | 2 oz (57 gm) | 2 (50.8) | 2 (50.8) | 1 (25.4) | |
| 21T703 | 2 Half Rnd | 2 oz (57 gm) | 4 (101.6) | 3 (76.2) | 1-1/2 (38.1) | |
| 21T704 | 2 Rectangular | 2 oz (57 gm) | 4-5/8 (117.5) | 2 (50.8) | 7/8 (19.9) | |
| 21T706 | 3 Half Rnd | 3 oz (85 gm) | 4-1/2 (114.3) | 3 (76.2) | 1-1/2 (38.1) | |
| 21T718 | 3 McD Rect | 3 oz (85 gm) | 4-5/8 (117.5) | 2 (50.8) | 1 (25.4) | |
| 21T707 | 3 Rectangular | 3 oz (85 gm) | 5-3/8 (136.5) | 2-1/2 (63.5) | 1/2 (12.2) | |
| 21T708 | 4 Half Rnd | 4 oz (113 gm) | 4-5/8 (117.5) | 3-1/4 (82.5) | 1-3/8 (34.9) | |
| 21T727 | 4 HR Wide | 4 oz (113 gm) | 5-1/16 (129) | 3-1/2 (89.5) | 1-3/8 (34.9) | |
| 21T726 | 4 HR-JP-Brks | 4 oz (113 gm) | 4-1/2 (114.3) | 3-1/2 (88.9) | 1-1/4 (31.8) | |
| 21T709 | 5 Half Rnd | 5 oz (141 gm) | 4-7/8 (123.8) | 3-1/4 (82.5) | 1-5/8 (41.3) | |
| 21T710 | 5 Jamaican | 5 oz (141 gm) | 4-1/2 (114.3) | 4 (101.6) | 7/8 (19.9) | |
| 21T729 | 5.5 HR – Bol | 5.5 oz (156 gm) | 5-1/4 (133.4) | 3-3/4 (95.3) | 1-1/4 (31.8) | |
| 21T730 | 5.5 Hf Rnd-Wav | 5.5 oz (156 gm) | 6-1/4 (158.8) | 3-1/2 (88.9) | 5/8 (15.9) | |
| 21T712 | 6 Half Rnd | 6 oz (170 gm) | 5 (127.0) | 3-5/8 (92.1) | 1-3/4 (44.4) | |
| 21T713 | 7 Half Rnd | 7 oz (198 gm) | 5-9/16 (141.3) | 3-1/4 (82.5) | 1-3/4 (44.4) | |
| 21T714 | 8 Half Rnd | 8 oz (227 gm) | 5-1/2 (139.7) | 3-3/4 (95.2) | 2-3/8 (60.3) | |
| 21T722 | 8 Rectangular | 8 oz (227 gm) | 7-1/2 (190.5) | 3-1/8 (79.4) | 1-3/4 (44.4) | |
| 21T715 | 9 Half Rnd | 9 oz (255 gm) | 6-7/16 (163.5) | 3-1/2 (88.9) | 2 (50.8) | |
| 21T716 | 11 Half Rnd | 11 oz (311 gm) | 7-1/8 (181.0) | 3-1/4 (87.5) | 2-1/4 (57.2) | |
| 21T717 | 14 Half Rnd | 14 oz (397 gm) | 6-7/8 (174.6) | 3-3/4 (95.2) | 2-1/2 (63.5) | |
| 21T725 | 16 HRJumbo | 17 oz (482 gm) | 8 (203.2) | 3-3/4 (95.2) | 2-1/2 (63.5) |
