6 Lane Liquid Stickpack Packaging Machine
6 Lane Liquid Stickpack Packaging Machine
Shipping Weight: 450 lbs
Usually Ships within (3-6) Weeks from Date of Order/Payment.
$112,130.00
Product Description

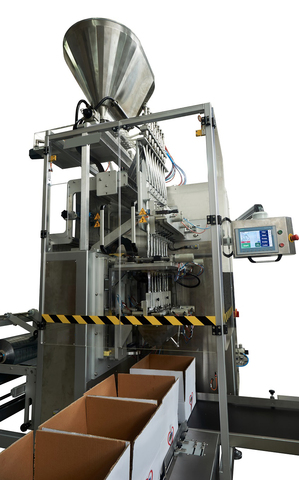

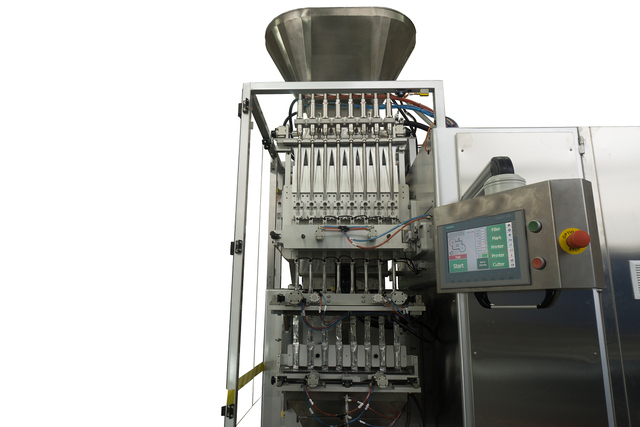

6 lane Liquid Stick Pack Machine
180-200 Pack/Min
TECHNICAL SPECIFICATIONS
– Min. pack width : 17mm.
– Max. pack width : 35mm.
– Min. pack length : 50mm.
– Max. pack length : 160mm.
– Max. roll width : 100mm.
– Film speciality : Paper+Alu.+Pe / Paper+Pe / Pet+Alu.+Pe
– Film cone inner diameter : 76mm.
– Film outer diameter : 300mm.
– Energy consumption : 1.5 kW/h
– Air pressure : 6-8 Bar
– Air consumption : 250 liter/min.
– Electricity : 3P+N+PE 380 VAC/110VAC
– Weight : 200 kg.
– Dimensions (WxDxH) : 1050x1150x1700 (mm.)
- Pack length adjustment from HMI by linear servo
- Film roll holder seperate from main frame
- Automatic film unwind
- No adjustment needed on film slicer by motor motion
- Easy film roll changes with air shaft
- Easy clean mechanical design
- Serrated, line or perforating horizontal cutters
- No pressure adjustment on horizontal sealers
- Open frame design
- Easy access to film frame
- User friendly controls
- Worldwide branded components
- Compact design
- Spare parts catalogue
- 10 years plc & hmi software warranty
- I/O test manual facility
- High speed production anti-vibration system
- Non-stop production with automatic box seperator
- Clean horizontal cutting without tearing
- Easy knife change
- Better protection for heating cable connections
- Easy and fast disassembling of nozzles,Servo motor liquid pump (0.01mm precision – 100mm/sec. speed)
- Maximum volume precision in a single piece actuator
- Food grade quick release fittings
- Teflon tubes
- Actuator heating on double jacket filling system
