2012′ Gemini 48” Wide Combination 5/3 Dough Ball Make Up Line
2012′ Gemini 48” Wide Combination 5/3 Dough Ball Make Up Line
Item No:23932
Manufacturer:Gemini
Model No:
This item is pre-owned
Price Does NOT include cost of crating, shipping, delivery or installation
This Item Ships (1) Each Via Common Carrier Truck
Shipping Weight TBD
Shipping times will vary.
Limited International Delivery Available.
Shipping Weight TBD
Shipping times will vary.
Limited International Delivery Available.
$230,000.00
Product Description

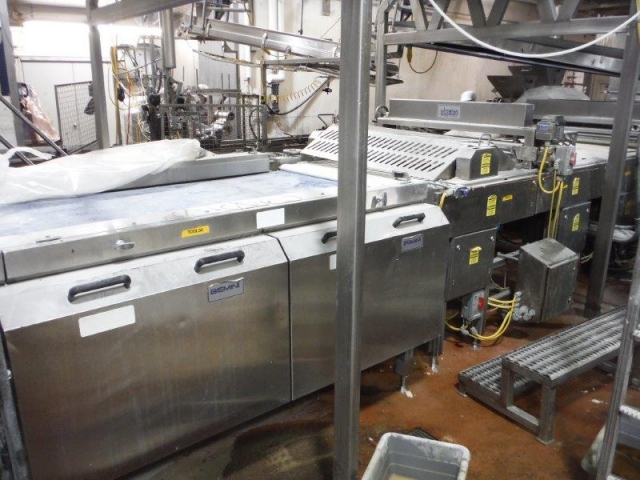

48” Wide – 5/3 Pizza Dough Ball Make Up Line
– 6 ounce dough balls. 5 x 5 pattern. 10 minute intermediate proof time. 175 pieces per minute @ 7 pans per minute.
– 16 ounce dough balls 3 x 3 pattern. 10 minute intermediate proof time. 63 pieces per minute @ 7 pans per minute.

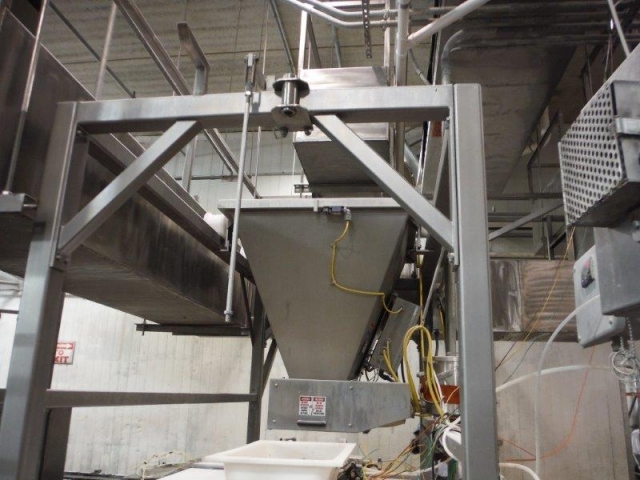

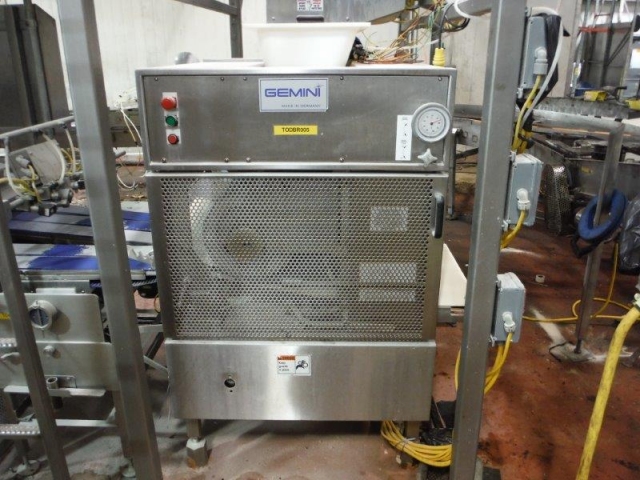

Qty (1) RDP–1000 Rotary Dough Preportioner:
Welded Stainless Steel Support Frame
Capacity: 1000 Lbs.
Capacity: 1000 Lbs.
Qty (2) 8″ Diameter SS Chunking Rotors With Qty (3) 3/8″ Thick Blades
Photo Electric Dough Level Sensors

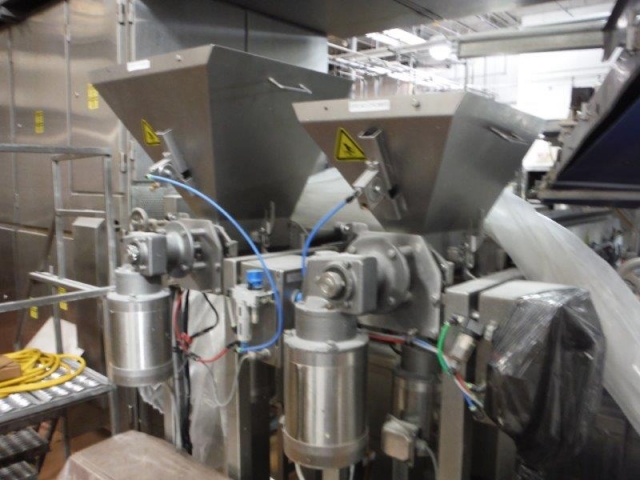

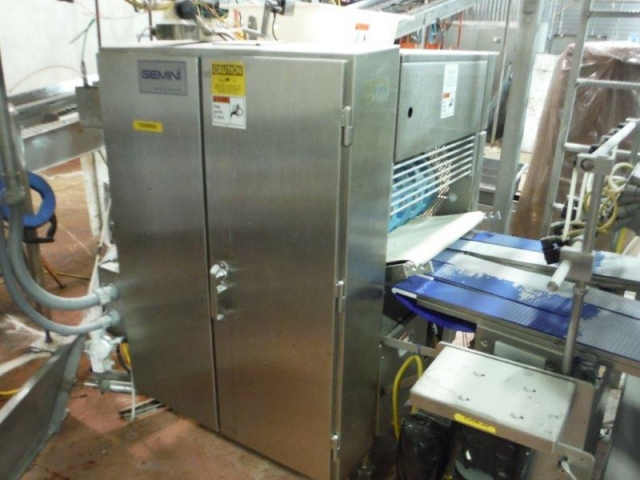

Qty (1) TWS-HD-BB 5/3 Pocket Combination Divider/Rounder
**setup for 51% to 59% water absorption
Hopper Capacity: 135 Lbs.
Qty (1) Interchangeable Stainless Steel Measuring Units With Qty (5) Pockets and Qty (5) Acid Resistant High Impact Hydex Measuring Pistons
Qty (1) Interchangeable Stainless Steel Measuring Units With Qty (3) Pockets and Qty (3) Acid Resistant High Impact Hydex Measuring Pistons
Qty (2) HDPE Inner Moulding Drums
Qty (1) HDPE Interchangeable 5-Pocket Outer Rounding Drum
Qty (1) HDPE Interchangeable 3-Pocket Outer Rounding Drum
Qty (1) Heavy Duty Synthetic Rounding Belt With Adjustable Tensioning Device

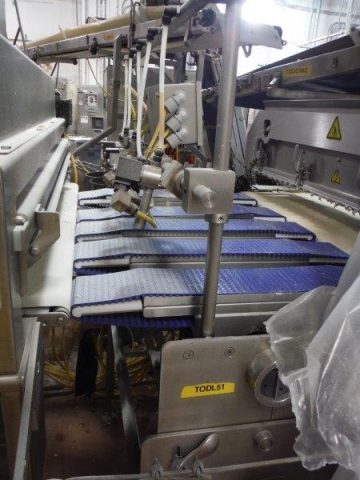

Qty (1) SB-5-1200 Powered Spreader Belt Assembly
Adjustable 5 Lane Spreader Belt: 1200mm Long

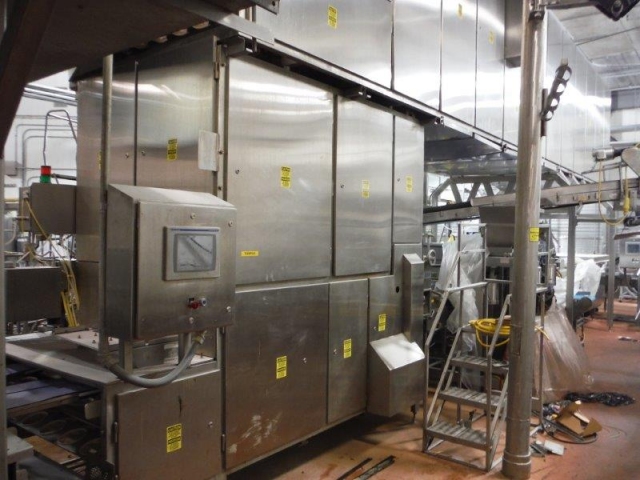

Qty (1) RL5-5E-350M 5 Pocket Intermediate Proofer
Stainless Steel Frame

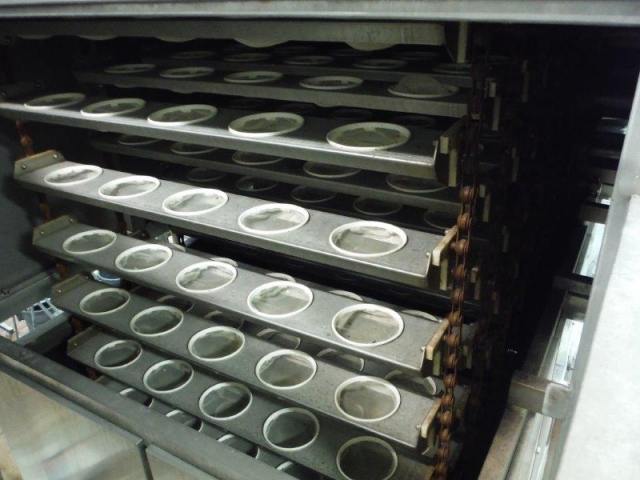

Qty (350) Active (5) Pocket Stainless Steel Proofer Trays with (5) Removable 140mm Plastic Mesh Proofer Cups

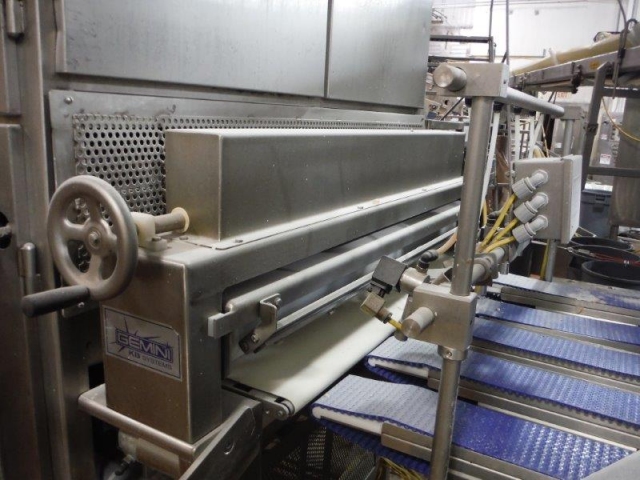

Discharge Conveyor With Spreader Belts and Flattening Roller Assembly

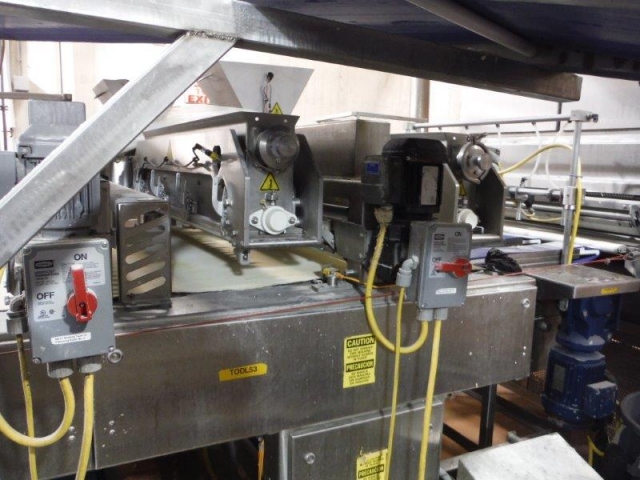

Qty (1) Application Station With Qty (2) Flattening Rollers and Qty (1) Bread Crumb Applicator
Qty (1) 7 Foot Long Application Conveyor

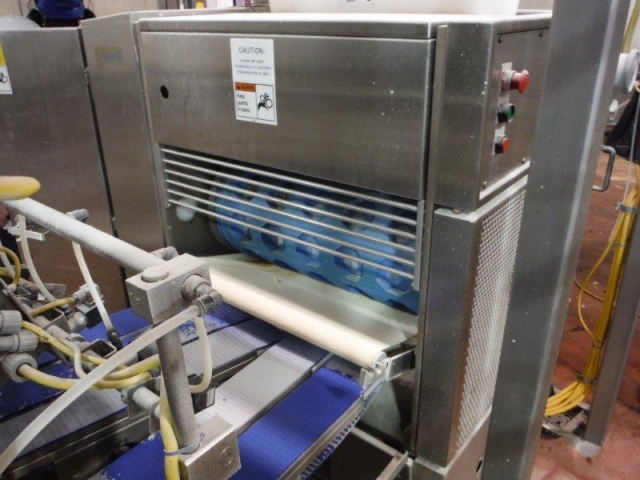

Qty (2) Independently Powered Stainless Steel Flattening Rollers
Qty (1) Rotary Style Stainless Steel Bread Crumb Applicator
Qty (1) Dough Ball Transfer/Alignment Conveyor
2 Foot Long Product Transfer/Alignment Conveyor

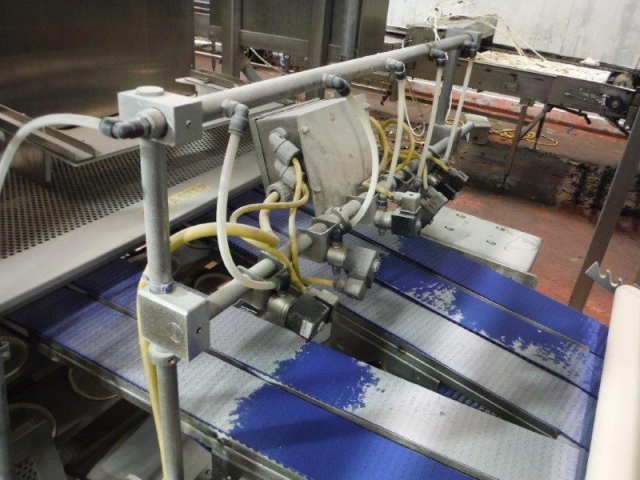

Qty (1) Zig-Zag Alignment Gate With Independent Conveyor
4 Foot Long Alignment Station Conveyor
Pneumatically Actuated Stainless Steel “Zig-Zag” Alignment Gate
Qty (1) Interchangeable 5 Pocket Gate Insert
Qty (1) Interchangeable 3 Pocket Gate Insert

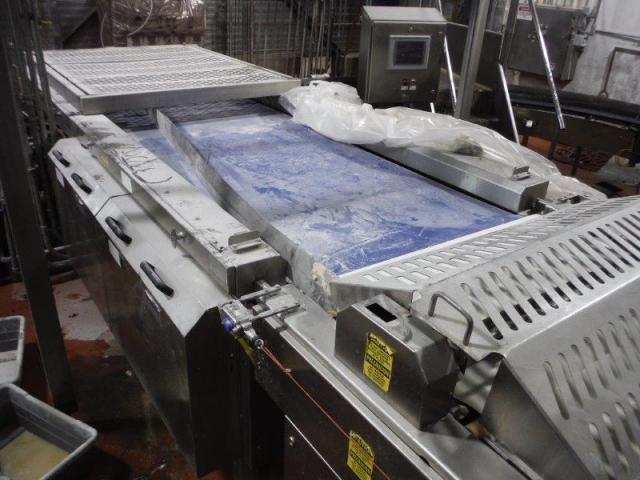

Qty (1) RL 18-48 Servo Reciprocator
Belt Width: 48″
Stainless Steel Removable Catch Pan At The Infeed
Pneumatically Actuated 48″ Wide Pivoting Nose

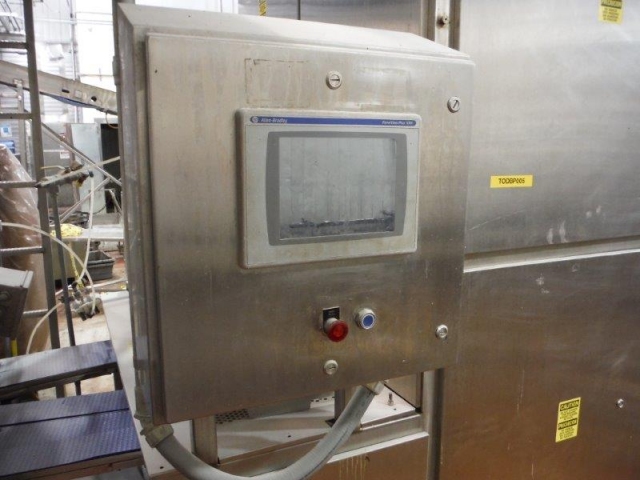

Qty (1) RL23 NEMA 4X Control Panel
Stainless Steel
Allen-Bradley Panel View 1000 Plus Operator Interface Terminal
Each Section Of The Line Has Its Own Screen Or Set Of Screens
Allen-Bradley PowerFlex Variable Speed Drives
Electric Specs: 460-230v/60hz/3ph
