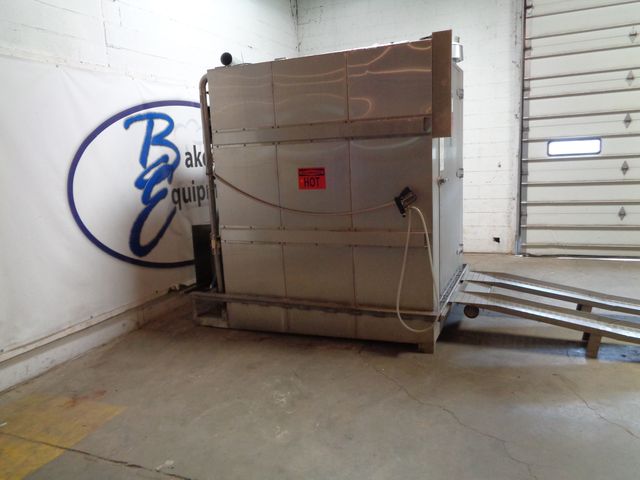

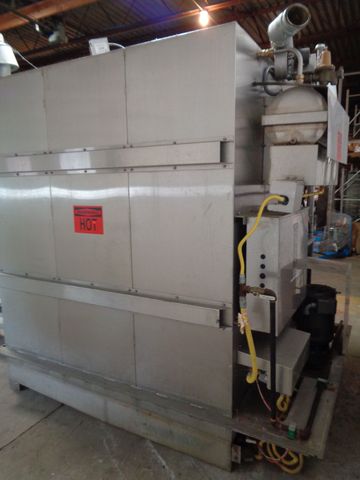

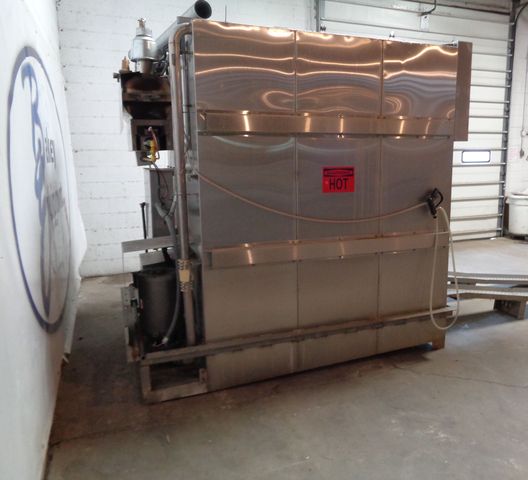

Product Description

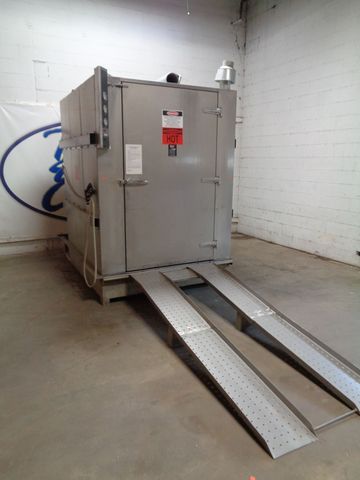

This unit is specifically designed for a bakery.  Built 6” wider to accept a larger roll in rack.

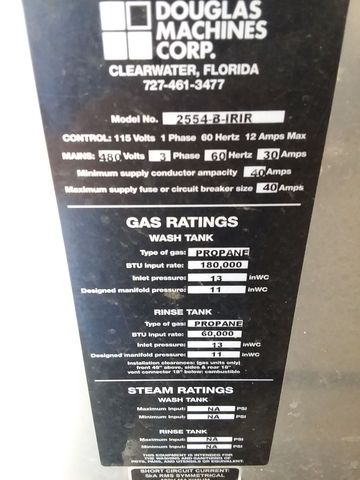

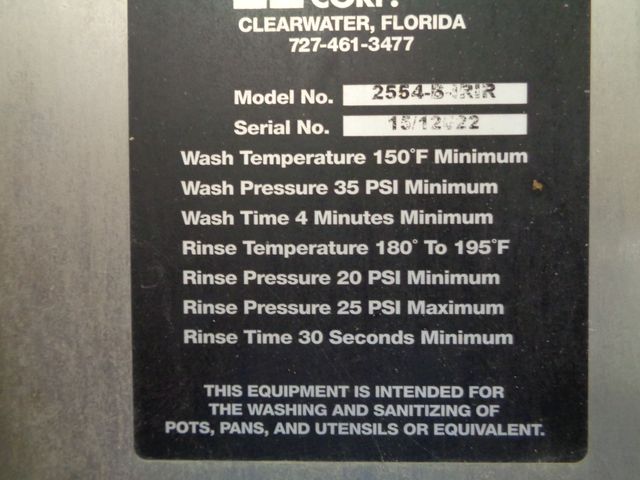

Model: 2554-B
S/N: 15/12022
DOM: 2015
O.A. Dims: 101-3/8″D x 66″W x 100-1/2″H

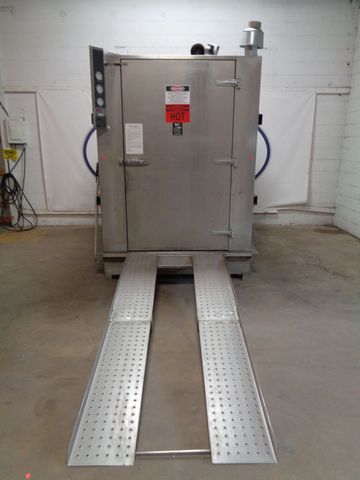

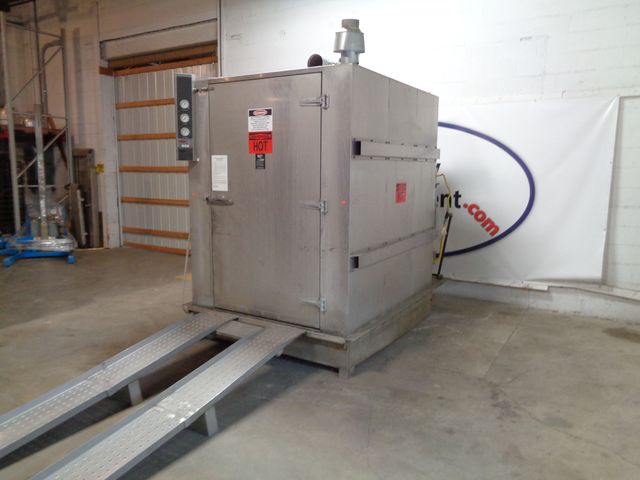

Door Opening: 36″W x 76-1/2″H

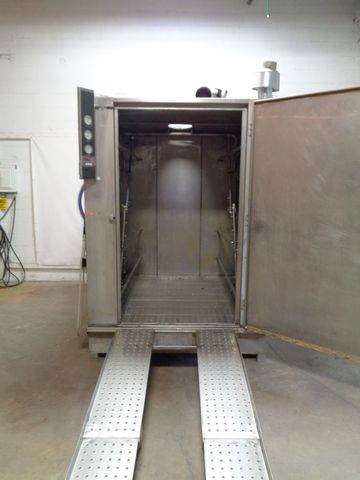

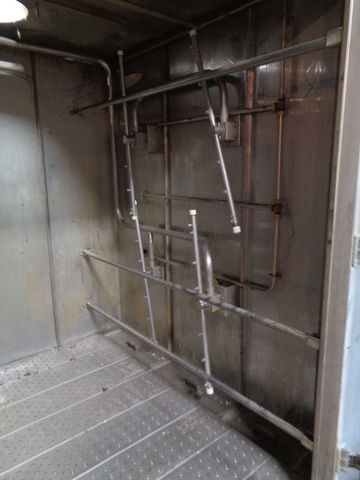

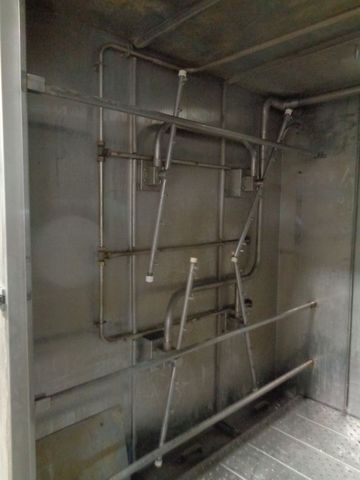

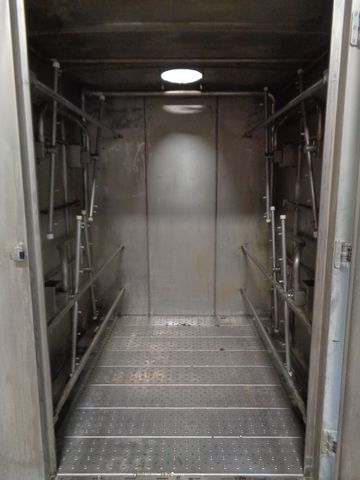

Wash Chamber: 65-1/2″D x 36″W x 76-1/2″H
Portion Of The Washer Under Floor Lip To Sit Inside The Pit: 93-1/4″L x 66″W x 13-1/2″H

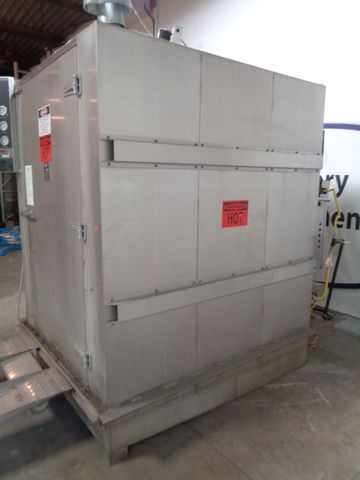

Stainless Steel Construction
30 AMP
480V 60Hz 3Ph

Wash Pump: Complete with 25 H.P. ODP motor Rated for 430 gallons per minute at 35 to 45 PSI.

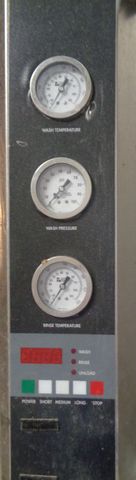

Recirculating Wash Tank: Complete with low water protection, automatic fill, 1 1/4”NPT overflow connection, 2” gate drain valve, thermometer, pressure gauge and is thermostatically controlled. 185 gallon tank capacity,  sloped to drain.

(unit has been converted to Nat. Gas 5/10/19)

Gas Consumption:240,000 BTUs per hour. Supply Pressure: Minimum 7”
w.c. for natural, 11” w.c. for propane and 14” w.c. maximum.
