Product Description

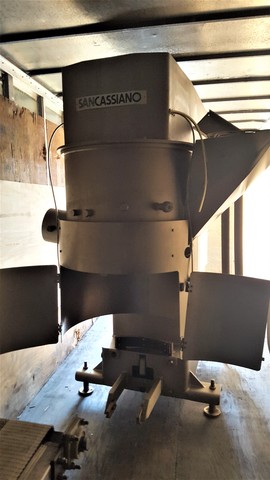

Sancassiano OIL FREE Planetary Mixer

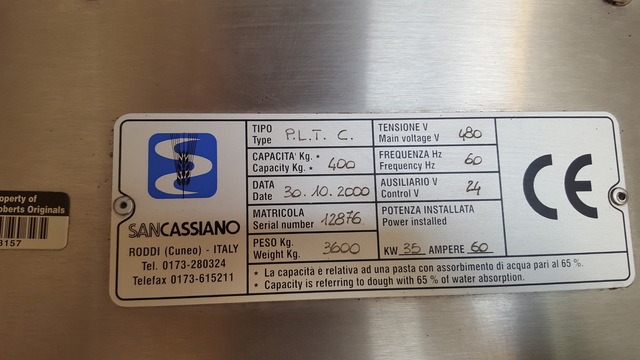

Manufacturer: Sancassiano S.p.A.
Model: PLT-C
S/N: 12876
DOM: 2000
Capacity: 400kg/487qt
Material: Stainless Steel
Electrics: 480v/60hz, 35kW/60Amp
Weight: 3,600kg (7,937lb)

Attachments included:
2 Paddles
1 Bowl Scraper

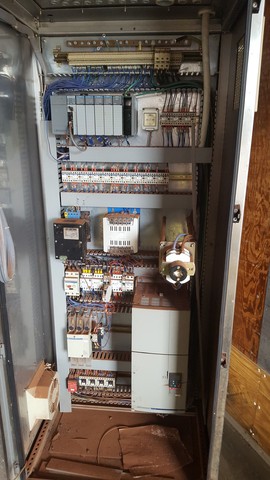

Controls:
Programmable Logic Controller (PLC)

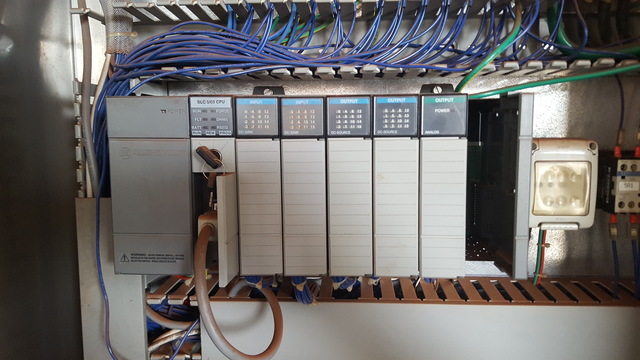

Allen-Bradley SLC5/03 CPU

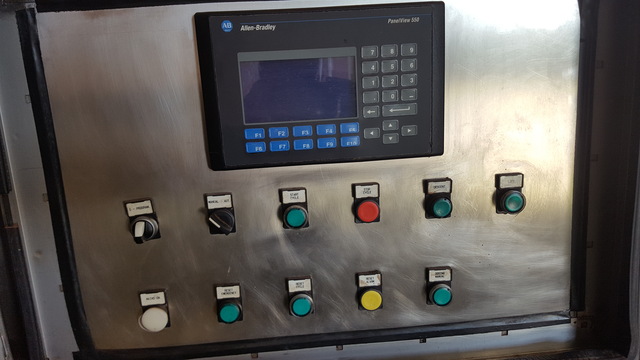

PanelView 550

Advantages of a Sancassiano PLT-C Mixer:
All components are commercial/standard parts so operator can perform maintenance with specialized training.
Designed to endure severe high-pressure cleaning processes without damage.
Gearbox has very long life expectancy.
Greater degree of flexibility that other types of mixers.
Able to handle a large range of products, from smooth batters, to wire cut cookie doughs, fillings, and cakes.
Heavy duty system that operates two tools and one continuous scraper designed to reach the entire inner surface of the bowl, including the bottom – decreasing the number of phases and average production time by up to 75% in comparison to single tool mixers.
Has two embedded independent motors: one to drive the tools and one to drive the planetary movement and scraper.
Independent speed control of the tools and the planetary movement .
Removable bowl feature.
Can be inserted in robotic installations like carousels or linear systems in order to integrate the most complicated processes.
Can be used with bowls ranging in size from 120 Liters to 1,300 Liters.

Advantages of the OIL FREE Mixers:
Patented Gearbox OIL FREE system has no gears or oil in mixer head.
No contamination of the dough by oil.
Reduced numbed of bolts and lack of sharp edges limit areas on which bacteria can grow.
The driving system is much cleaner and simpler allowing the operator to assemble and disassemble the machine quickly and easily.
No gaskets or seals are necessary.
Less maintenance is needed to keep the machine operating efficiently.

* Located in the United States.
