Product Description

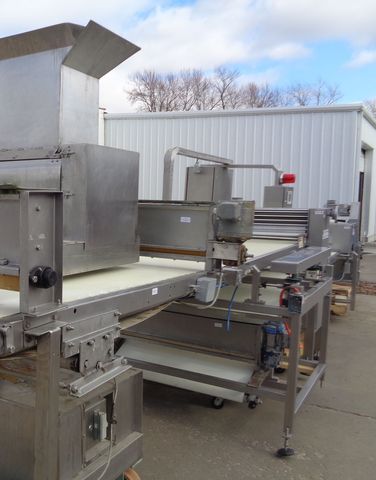

This Line Consist Of:
3) Flour Dusters
1) Portable 3 Roll Extruder
1) Gauging Station
1) Control Panel
1) Roll Cutting Station
9) Roll Cutters
1) Scrap Dough Return Conveyor

Overall Line Footprint:
384″L x 80″W x 98″H
230V 60Hz 3Ph 33 Amps

Flour Duster #1:
O.A. Dims: 52-1/2″W x 8-3/4″D x 14″H
Height Clearence: 2-3/4″
Stainless Steel Construction

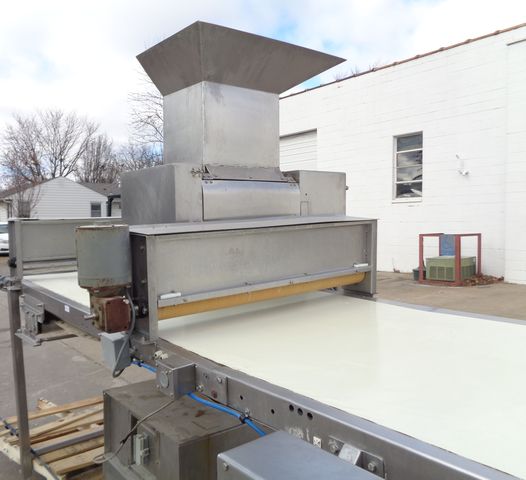

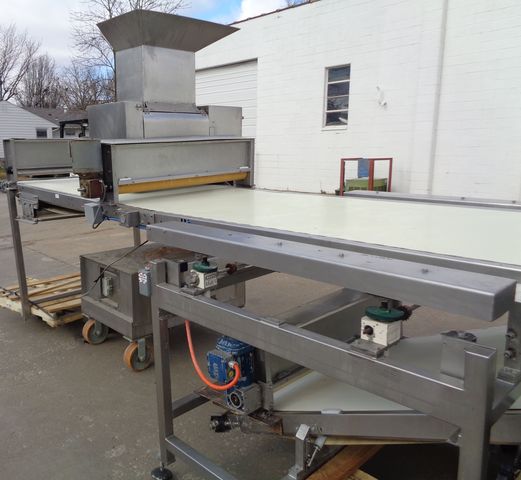

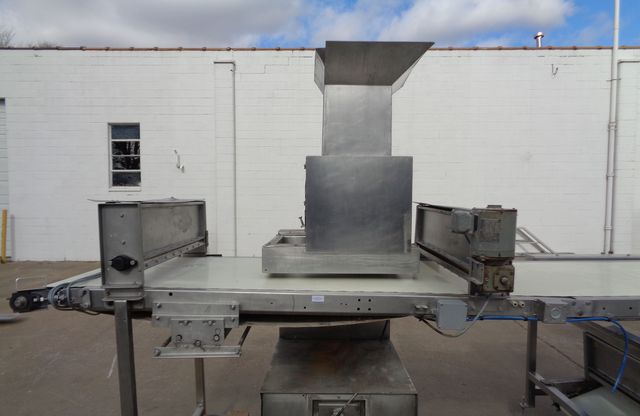

3 Roll Extruder:
Hopper Dims: 17-3/4″L x 13-1/2″W x 20-3/4″D
3 Stainless Steel Rollers
Roller Dims:
2) 17-3/4″W x 8-1/2″Diameter
1) 17-3/4″W x 12-1/2″Diameter
O.A. Dims: 45″L x 29-1/2″W x 98″H
Stainless Steel Construction
On Casters

Flour Duster #2:
O.A Dims: 52-1/2″W x 8-1/2″D x 14″H
Height Clearence: 2″
Stainless Steel Construction

Flour Duster #3:
52-1/2″W x 8-3/4″D x 14″H
Height Clearence: 3-1/2″
Stainless Steel Construction

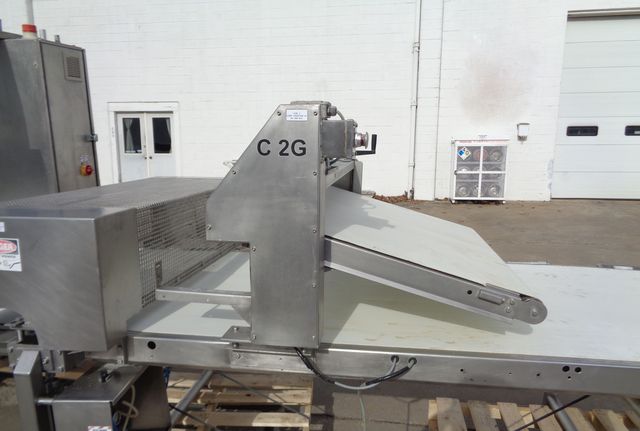

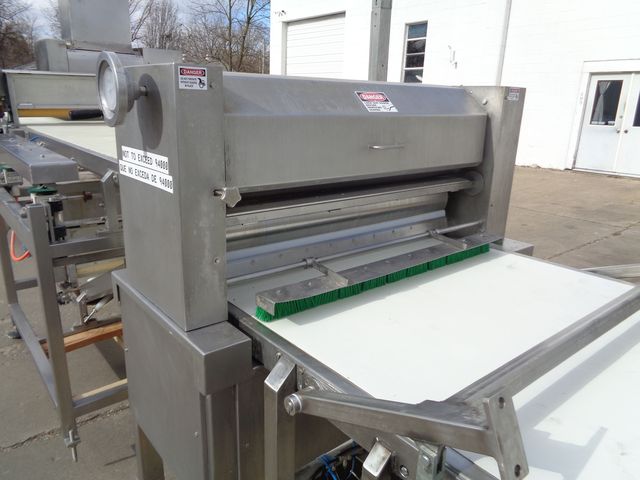

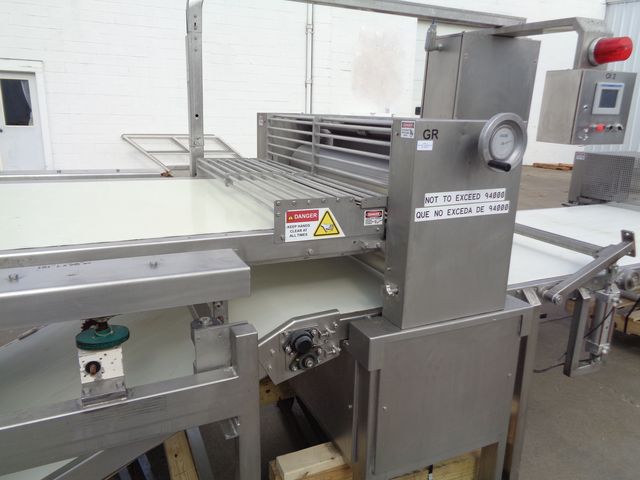

Gauging Station:
Roller Gap Adjustable From: 1/8″ to 1-1/2″
Height Clearence: 1-3/4″
Rollers: Stainless Steel 41-1/4″L x 8″ Diameter With Excess Dough Scraper
O.A Dims55-1/4″L x 25-1/4″W x 58″H

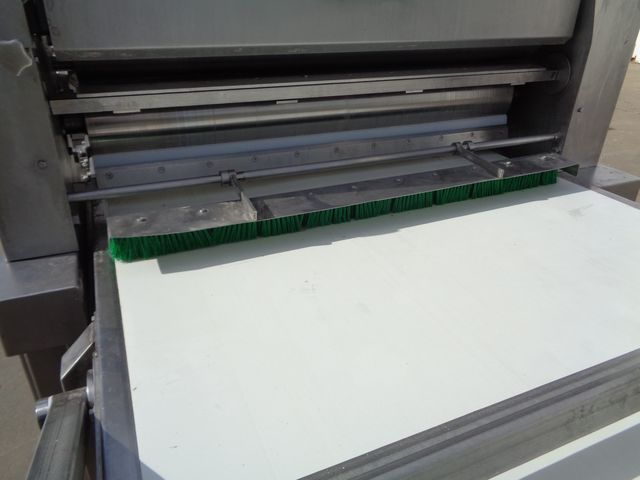

Flour Brush: 3-3/8″L x 39″W x 2-3/4″
Stainless Steel Construction

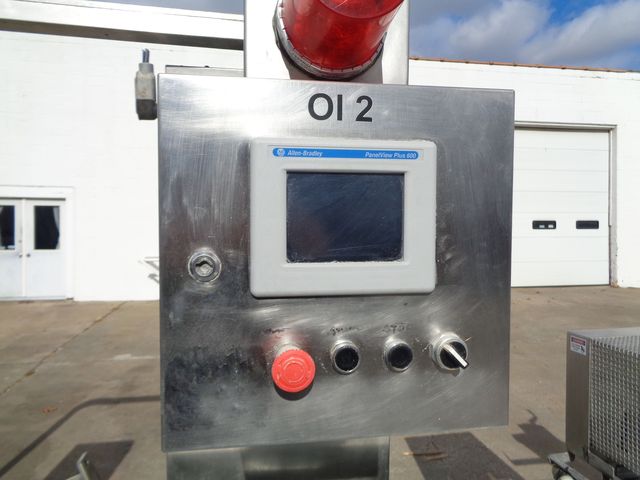

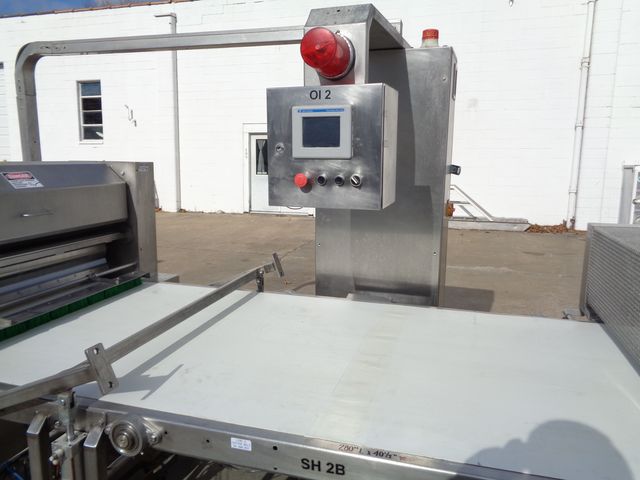

Control Panel:
51-1/2″L x 24″W x 79″H
Stainless Steel Construction

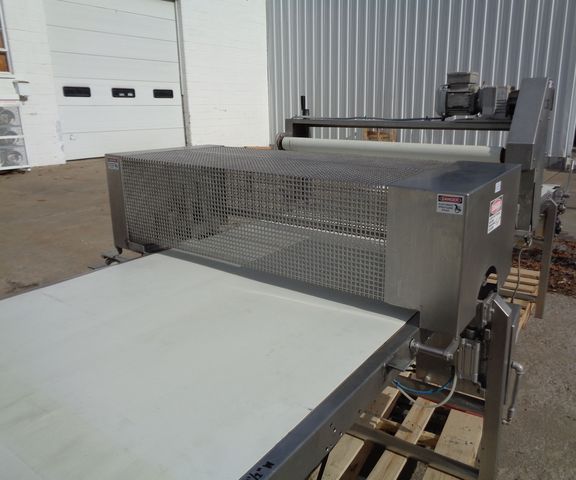

Roll Cutting Station:
Height Clearence: 1-1/2″
Stainless Steel Cover: 21-5/8″L x 55-1/2″W x 14″H
Adjustable Lower Pressure Roller

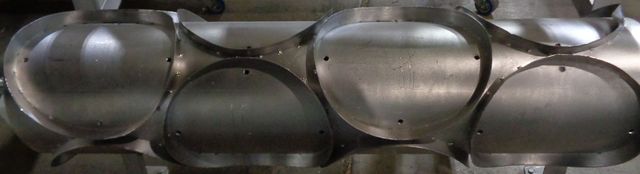

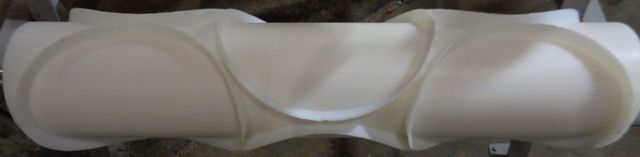

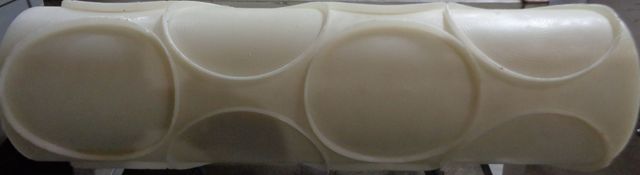

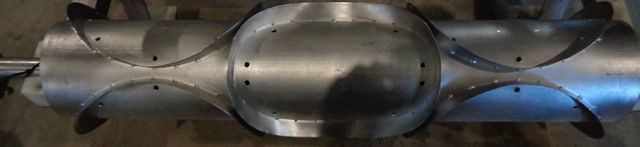

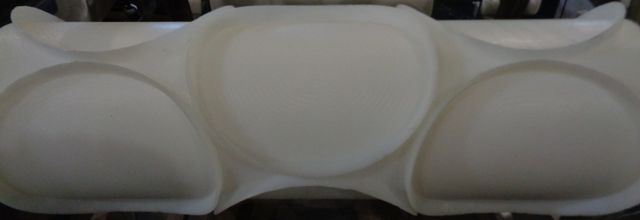

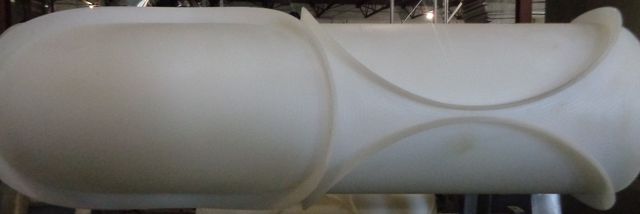

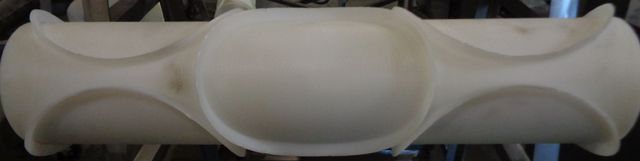

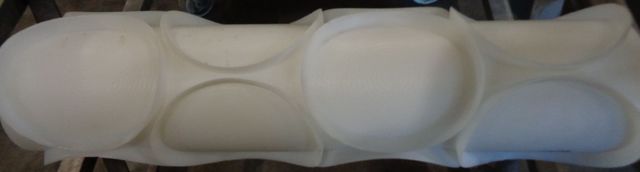

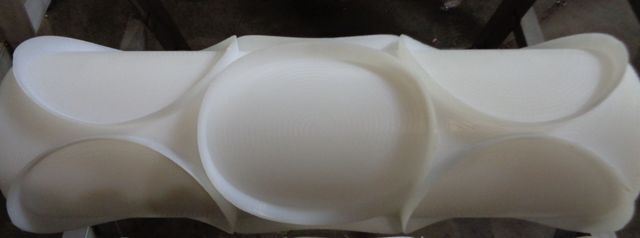

Comes With 9 Different Rollers:
1) 27″L x 8″ Diameter
Cuts: 9-1/4″L x 8″W 3/4″D Oval (3 Row)
2) 36″L x 9″ Diameter
Cuts: 12″W x 10″L x 1″D Oval (3 Row)
3) 37″L x 12″ Diameter
Cuts: 10″W x 9-1/2″L x 1/4″D Oval (4 Row)
4) 37″L x 10″ Diameter
9-1/2″W x 9″L x 3/4″D Oval (4 Row)
5) 27-1/2″W x 8-1/2″ Diameter
Cuts: 9-1/2″W x 8-1/4″L x 3/4″D Oval (3 Row)
6) 27″L x 8″ Diameter
Cuts: 14″W x 12-1/2″L x 3/4″D Oval (2 Row)
7) 32-1/2″L x 7-1/2″ Diameter
Cuts: 11-3/4″W x 9-1/2″L x 3/4″D Oval (3 Row)
8) 29″L x 6-1/2″ Diameter
Cuts: 7-3/4″W x 6″L x 1/2″D Oval (4 Row)
9) 36″L x 7″ Diameter
Cuts: 12″W x 9-1/4″L x 1″D Oval (3 Row)

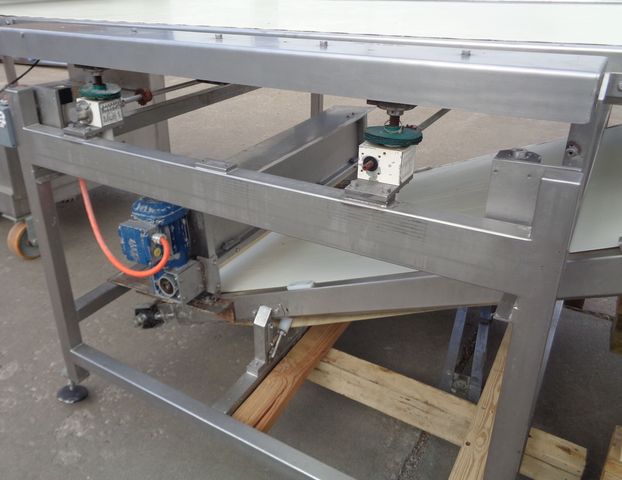

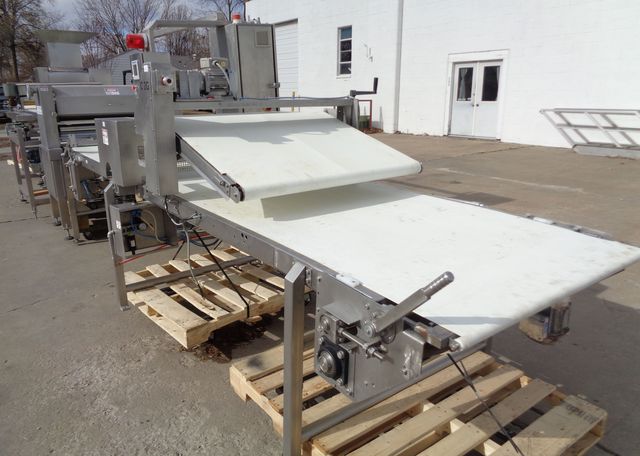

Scrap Dough Return Conveyor:
Belt Dims: 36″L x 41-3/8″W
Stainless Steel Construction
