Product Description

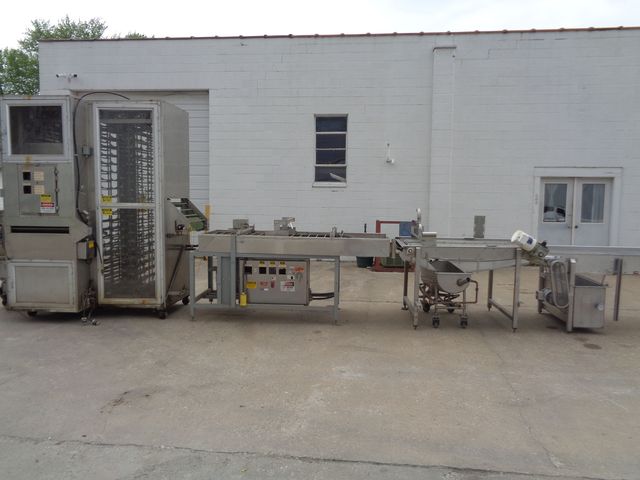

Krispy Kreme Donut System 270 dz per hour

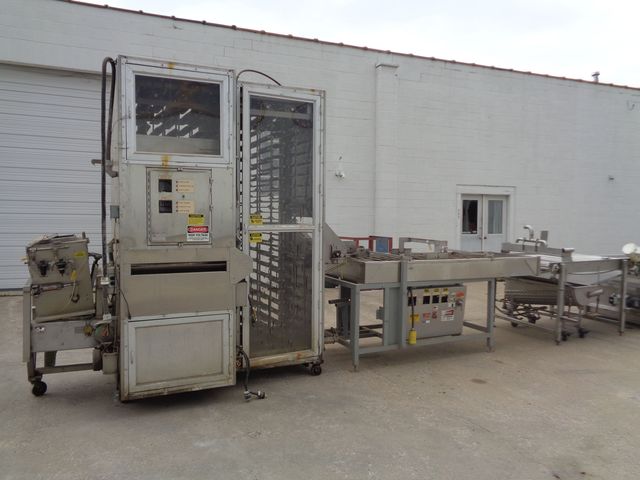

This Line Consist Of:
Donut Extruder/Pressure Cutter
Thermoproofer
Donut Fryer Electric
Automatic Donut Glazer w/pump
Cooling Conveyor
Packing Table

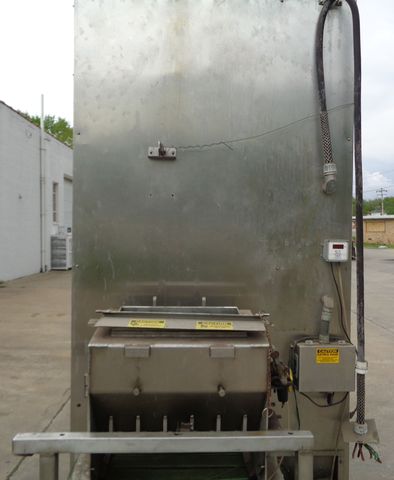

Donut Extruder/Pressure Cutter:
Model: 270/400
S/N: 1629
Mfg Date: 1998
O.A. Dims: 17″L x 28″W x 25″H
All Stainless Steel Construction

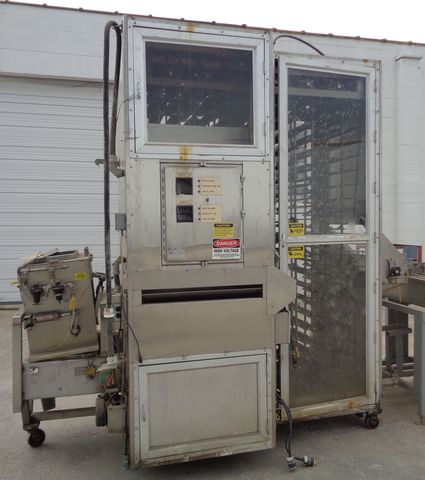

Thermo Proofer:
O.A. Dims: 114″L x 56″W x 113″H
Stainless Steel Construction
On Casters

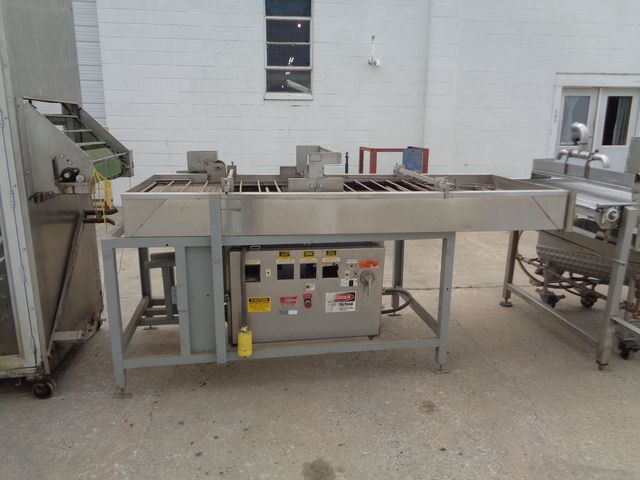

Donut Fryer:
Model: 62003 P 270 D/H Fryer
S/N: 2300
O.A. Dims: 99″L x 53″W x 52″H
Mfg Date: 2002
208V 60Hz 3Ph

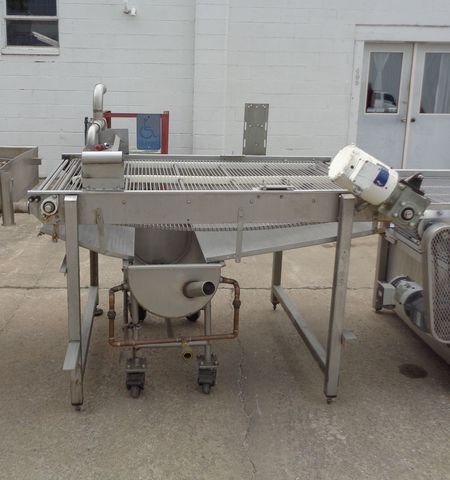

Automatic Donut Glazer With Pump:
(Unit Will Need A Steam Source To Heat The Icing)
O.A. Dims: 67″L x 55″W x 53-1/2″H
Belt Dims: 61″L x 38″W
Stainless Steel Wire Belt
Glazing Trough: 4″W x 39″L
Inside Tank Dims: 44″L x 16″W x 10″D
Drain Hole Diameter: 2-3/4″
Pneumatic Tank Agitator
Jacketed
Air Driven
Pressure Range: 0 – 230 PSI

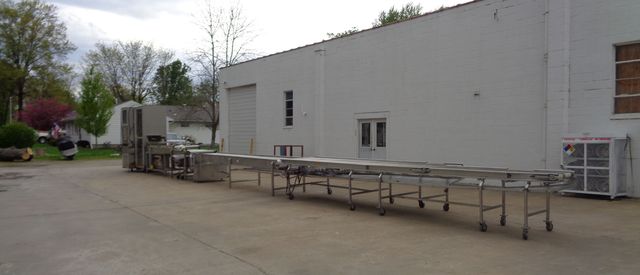

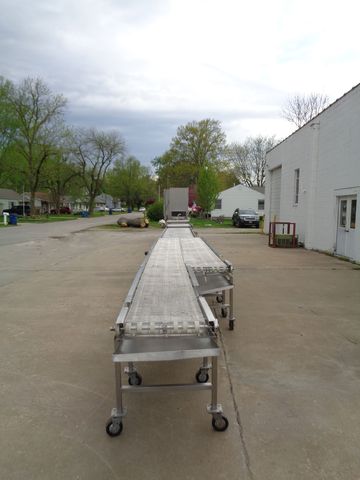

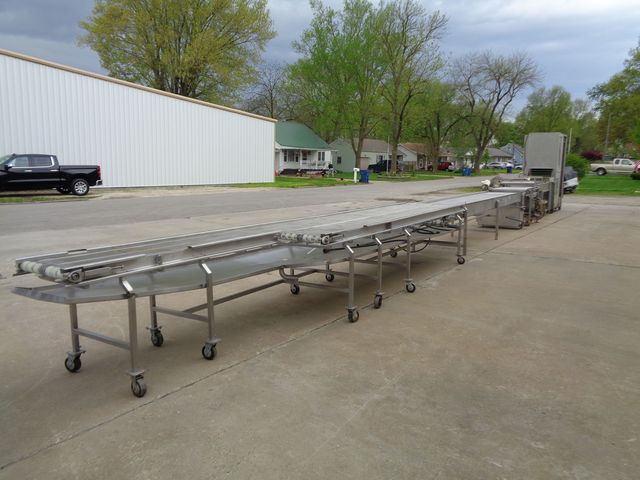

Cooling And Packing Conveyor:
O.A. Dims: 270-1/2″L x 54″W x 39″H
Stainless Steel Wire Mesh Belt
1st Row Belt Dims: 183-1/2″L x 20″W
2nd Row Belt Dims: 270-1/2″L x 20″W
Stainless Steel Catch Tray
Catch Tray Dims: 270″L x 46″W
Hydraulic Motor Operated
Mounted On A Square Tubular Stainless Steel Frame
All Stainless Steel Construction
On Casters

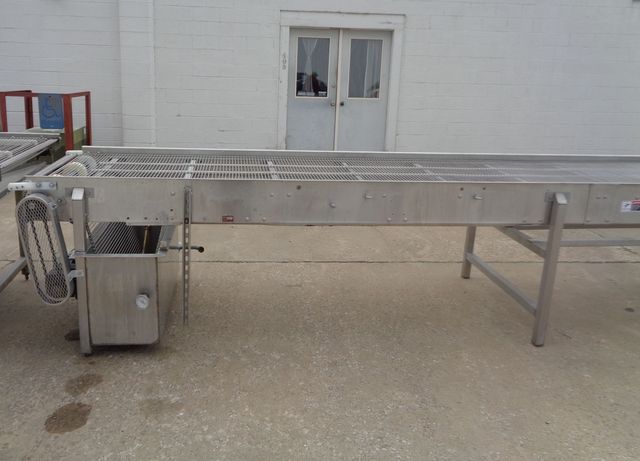

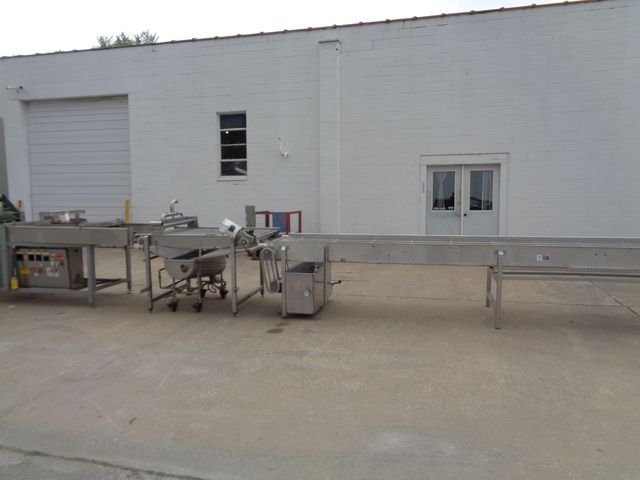

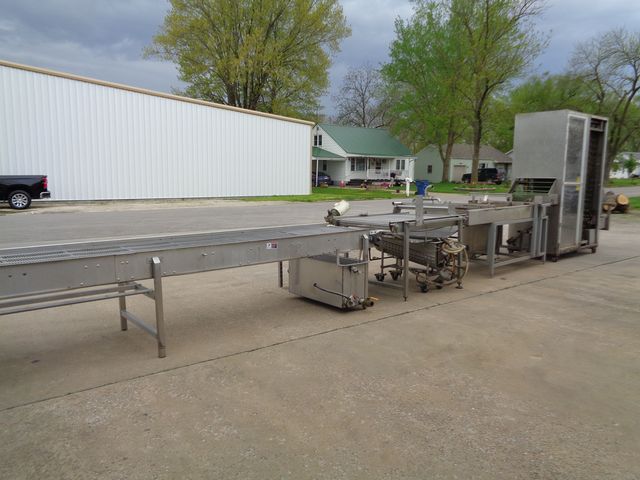

*Single Lane Straight Conveyor Shown in Photos After Glazer Not Included*
