Product Description

Model: Excel/170I
S/N: I95M18040
Line Speed Capability: (10 Characters per Inch, Single Line Of Print)
Can Print 1 – 3 Lines Of Print In Speeds Of Up To 916 Ft./Min. (278 m/min)
Print Rate: Up To 1832 Characters Per Second, Depending On Font.
Font Matrix Configuration: 5×5, 5×7, 5×7 twin-line, 5×7 tri-line, 7×9, 10×16, 16×24 and barcode fonts
Optimal Character Height: Selectable From Less Than 1/8″ To More Than 1/3″

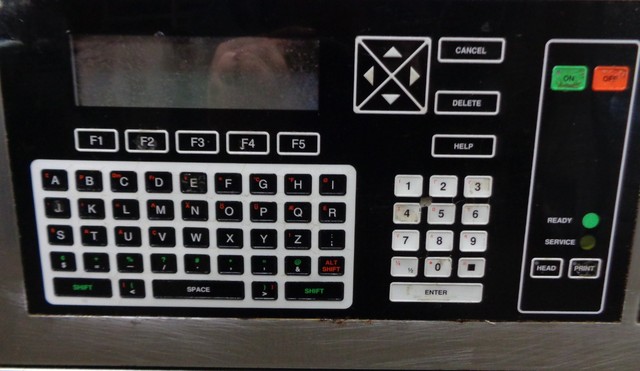

Keyboard: 66 alphanumeric and special character keys on moisture and
ketone resistant, membrane-type keyboard.
Display: 40-character, eight-line, illuminated (backlit) LCD display
Data Interface: 128-character ASCII code; RS-232C at baud rates selectable up to 19.2kbps
Print Head: Compact, stainless steel 1.375 inches (35 mm) diameter printhead, omni-directional capability.
Air Requirements: 65 to 85 psi minimum (4.3 to 5.7 bars), depending on ink; two SCFM maximum; dry, oil-free, filtered air
100/240V 50/60Hz 1Ph 2-1 Amp

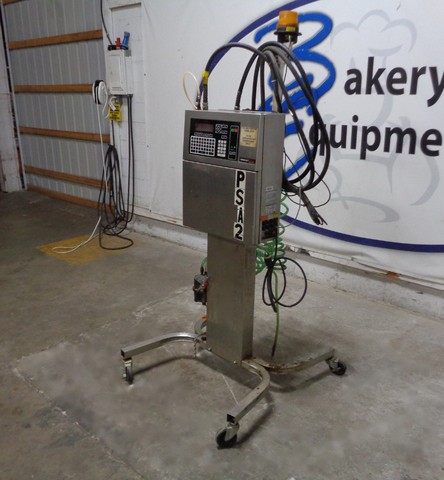

Mounted On A Square Tubular Stainless Steel Frame
On Casters
