Sugden Pancake Line, 2016
Sugden Pancake Line, 2016
Shipping Weight TBD
Shipping times will vary.
Limited International Delivery Available.
Product Description

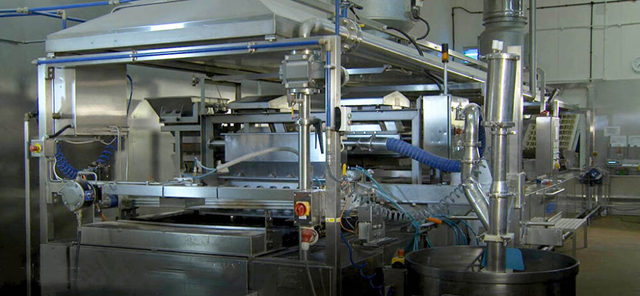

This Line Consists Of:
1) Integrated Plate Oiler

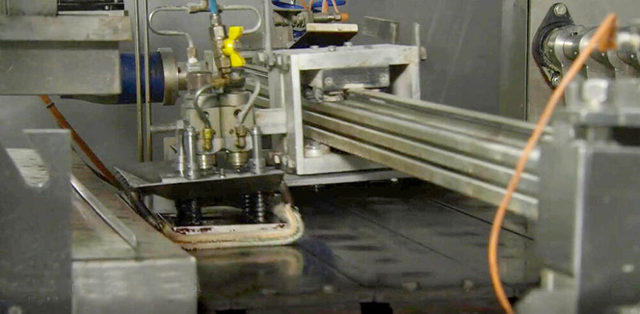

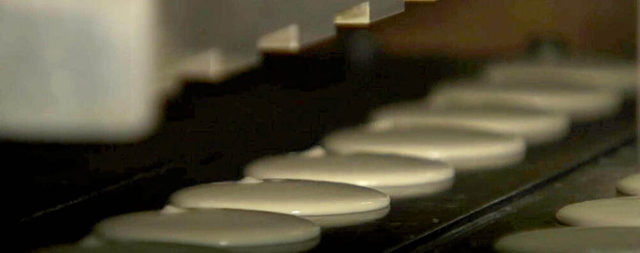

1) Sugden Depositor

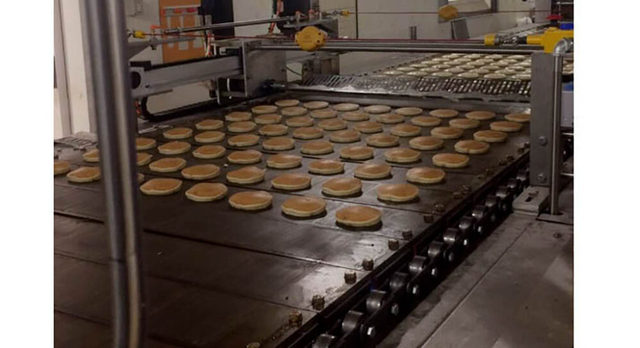

1) Hot Plate Baking System
Mfg Date: 2016
Product Size Range: 1.77″ – 5.11″ (45mm – 130mm)
Max Baking Width: 49.60″ (1260mm)
Working Width: 54.96″ (1396mm)
13 Burners
Natural Gas

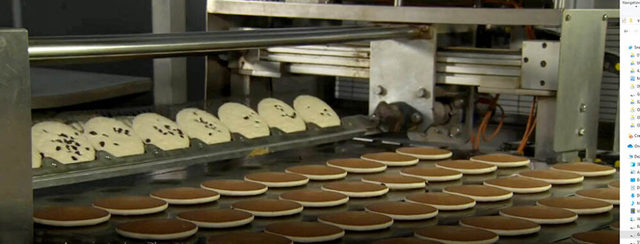

Servo Controlled Turnover System

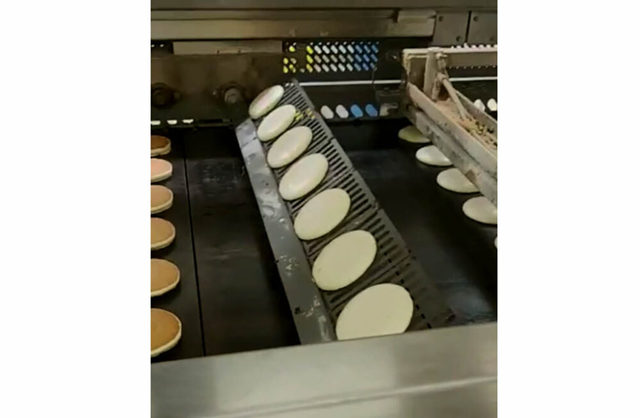

Servo Controlled Take Off System
Integrated Plate Cleaner
Suction Hood Above The Whole Line
Capacity:
1.77″ – 3.54″ (45mm – 90mm) 10,285 Pieces Per Hour (5 Min Bake Time)
3.93″ – 5.11″ (100mm – 130mm) 8,228 Pieces Per Hour (5 Min Bake Time)
Controlled By Allen Bradley PLC And Touchscreen
400V 50Hz 3Ph
*Does Not Include Rigging Or Shipping*
*Line Located In Europe*
Specifications
There are no specifications currently available for this product
