Product Description

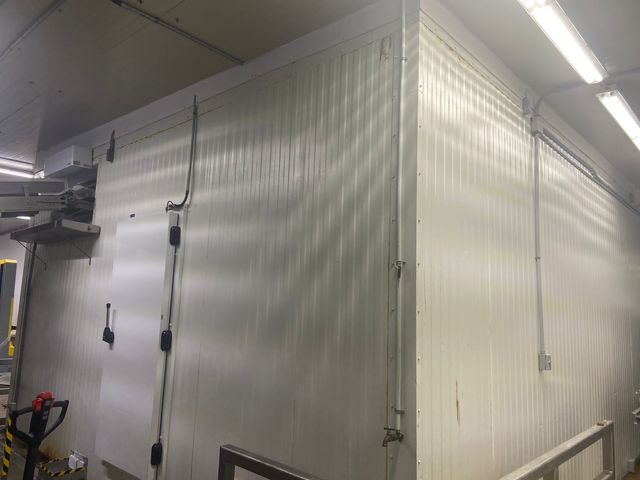

Insulated Enclosure:
O.A. Dims: 31’L x 20′-10″W x 11′-11″H
6″ Thick Insulated Panels
Panel Finish: White Enamel Over Galvanized Steel
Ceiling Support: Suspended From Plant Ceiling
Doors: 2 Heated Entrance Doors – 1 Non Heated Interior Door
Air Flow Baffle Walls: 4″ Insulated Panels
Scupper Drains: 2 Included
Floor Heat: Electric
Coolant: Ammonia

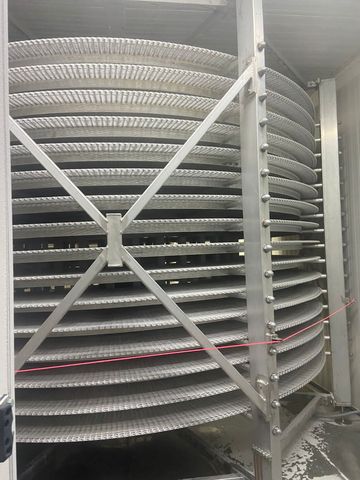

Spiral Freezer:
Configuration: Straight Through, Ascending
Infeed Height: 1′-11″
Discharge Height: 9′-10″
Belt Type: Stainless Steel Mesh
Belt Width: 28″ Active – 30″ Total
Belt Length: 753′ Active – 815′ Total
Belt Speed: 38 ft/min Maximum (Variable)
Freezing Time Range: 20 – 60 Minutes
Levels: 17
Tier Pitch: 5.75″
Product Clearance: 3″
Max Product Height: 2.5″

System Safeties:
Perimeter Safety Cord
On Screen Diagnostics
Motor Protection
Belt Protection
Take Up Assembly Protection
Man In Box Alert
Air Temperature Monitoring
Floor Temperature Monitoring

Operator Interface:
Allen Bradley Panelview 1000 LTD
Panel Mounted E-Stop

480V 60Hz 3Ph
Aluminum And Stainless Steel Construction
