Product Description

High Production Semi-Auto Shrink System With Power Film Unwind And Inverting Head.

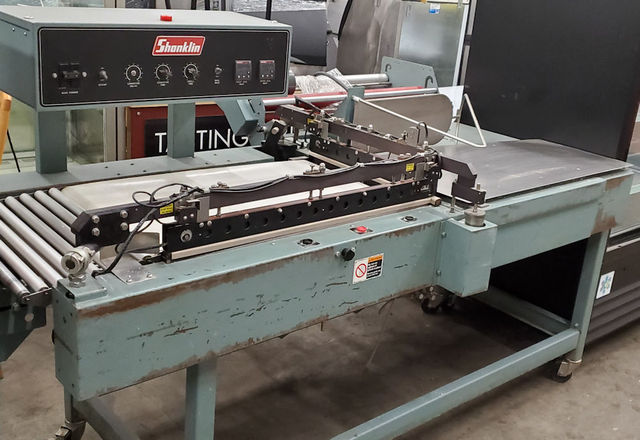

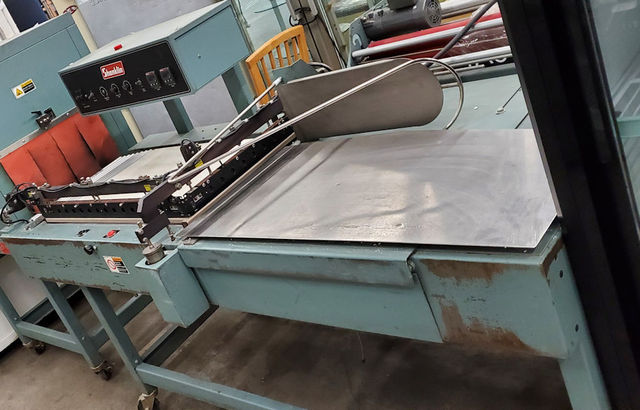

The S24B L-Frame Sealer Is A High Production Semi-Automatic Wrapping Machine. Features Of The Machine Include a 3-Point Sealing Arm Suspension With Air Magnetic Latching, Fool-Proof Arm Safety, A Precisely Controlled Heat Sealing Cycle And A Timer Controlled Discharge Conveyor.

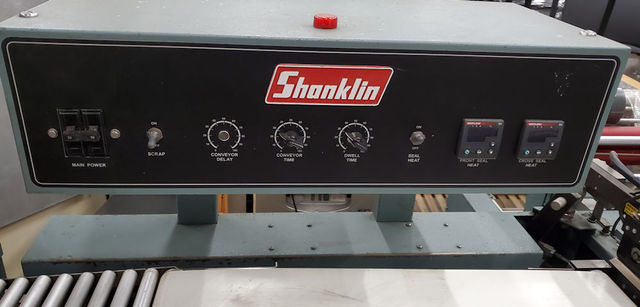

Electrical Relays Are Mounted On A UL Listed Panel Located Behind The Easy-To-Reach Control Panel Which Provides Accurate Heat For Consistent Seal. For Operator Convenience, The Unit Is Equipped With Telescoping Legs.

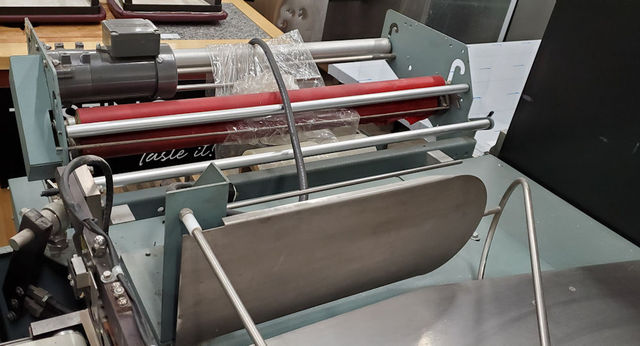

Higher-Production Speeds Are Achieved With The Model S24B/S24BL Because It Includes A Power Film Unwind And The Film Inverting Head Normally Found On Fully Automatic L-Sealers. The Power Film Unwind Permits A Free Feeding Of The Film, Increasing Operator Efficiency. In  Addition, Better Seals And Fewer Rewraps Are Obtained Because The Film In The Seal Area Is Always Loose.

Features:
15″W x 33″L Seal Area
27″ Wide Film
20 To 30 Packages Per Minute
Automatic Sealing Cycle
Power Film Unwind
Easy Loading Film Inverting Head
Left-To-Right Or Right-To-Left Product Flow
Easy-Access Electrical Controls
Automatic Package Discharge
Brush Backed Pin Perforator
One Piece Hot Knife Seal System

Specifications:
Machine Height Adjustable From 31″ – 43″
Foot print: 4.5′ x 7′
Ship Weight: 1222 lbs
Electrical: 208V 60Hz 1Ph
Air Requirements: 0.5 CFM @ 50 PSI
