Product Description

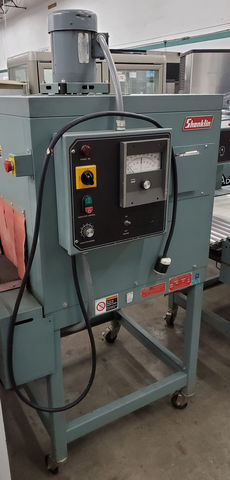

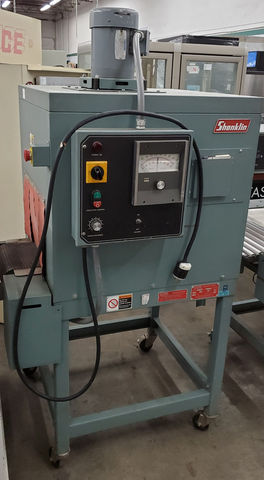

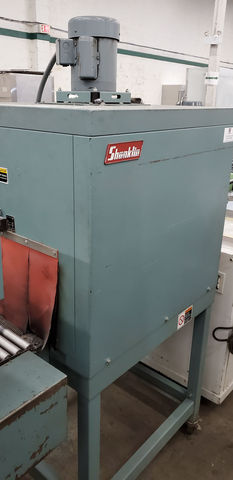

The Shanklin T-6H Shrink Tunnel Has A Large Opening With A 10″ Height To Accommodate Higher Profile Packages. You’ll Enjoy Excellent High Performance, Versatile Standard Features, Superior Shrink Capabilities, And Value Pricing That Expands Your Packaging Options.

Features:
Straightforward Design Means Dependable, Trouble-Free Operation With Less Maintenance.
An Excellent Value With Affordable Price.
Set Temperature, Conveyor Speed, And Air Velocity, And You Are Ready To Go.

Specifications:
Tunnel Passage: 10″H x 18″W x 30″L
Overall Dimensions: 67″H x 34.5″W x 57″L
Conveyor Height: 28″ Minimum – 40″ Maximum
Conveyor Speeds: Variable From 15 To 66 Feet Per Minute
Blower Motor: 0.75 HP, Single Phase Capacitor Start
Heaters: Three Finstrip (Encased Element)

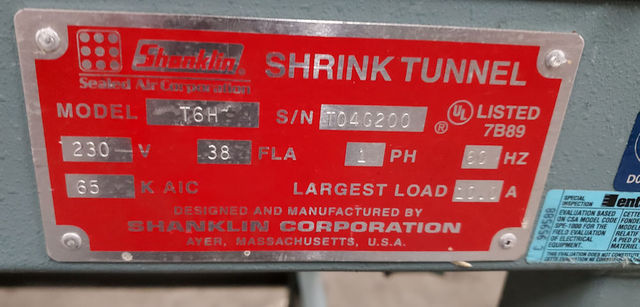

Power: 230V 60Hz 1Ph 38 Amps
Temperature Controller Precision Indicating Controller Calibrated 50° – 500°F
Foot Print: 5.0’L x 3.0’W
Weight: 598 lbs
Conveyor Variable Speed Control
On/Off Circuit Breaker
Variable Air Velocity Control
Auxiliary Heater Switch
