Product Description

Manufacturers: Spiromatic, Sancassiano, Fritsch, Grasso

Year: 2004
Capacity: Up to 6000 pizzas per hour
Diameters: 8.85″ , 10.43″ , 11.61″ (225, 265 and 295 mm)
Stored In Shipping Crates
**This Line Has Never Been Used And is Stored In The Original Packaging.**

Consisting of:
Spiromatic:

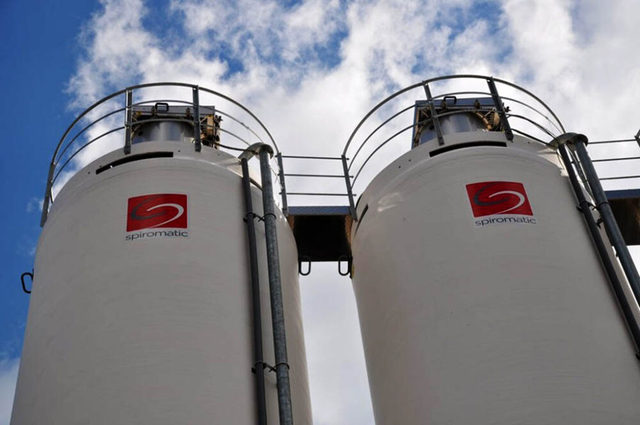

-2 outdoor silos, capacity 30 tons each, glass fiber polyester
-Spiral conveying
-Weighing hopper, capacity 440 lbs (200 kg)
-Spido 6 control
-Automatic water dosing
-Water cooling unit

Sancassiano:
-Dosing station

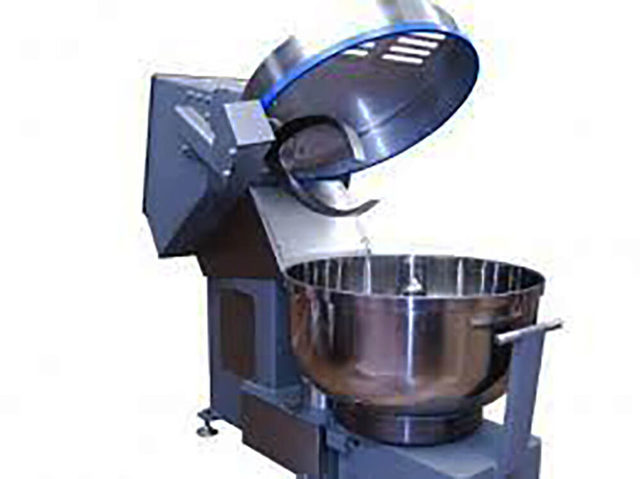

-2 pc. spiral mixers, Se 300
-5 pc. bowls
-Bowl lift
-Movable robot for bowl transport

Fully automatic system for pre dough:
-4 tanks with each 1585 gallon (6000 liter capacity), double jacketed with cooling
-Yeast treatment system, to dissolve block yeast into liquid yeast
-Liquefying system for rework dough

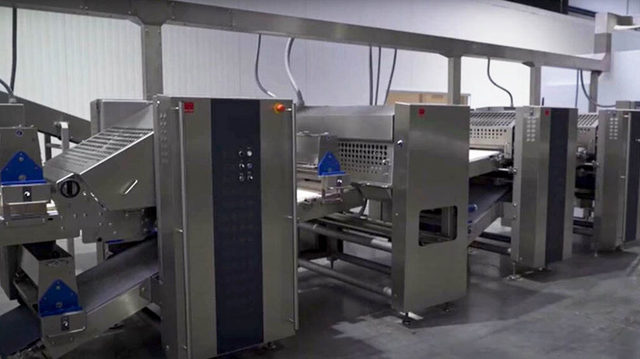

Fritsch:
-Preportioner, with starroller
-Relax-dough-processor, RDP 600 HV-L
-Satellite head 1100/200 HV-L
-Spiral cross roller 1100
-Sheeter head 1100/200 HV-L
-Sheeter head 1100/200 HV-L
-Flour removal brush 900/1100/1300
-Proofing belts, proofing time 10 minutes, 49′ (15 meters) above the line
-Hydraulic guillotine 1100
-Punching dies 10.43″,11.61″, 8.85″   (265, 295 and 225 mm)
-Docking roller
-Dough scrap removal

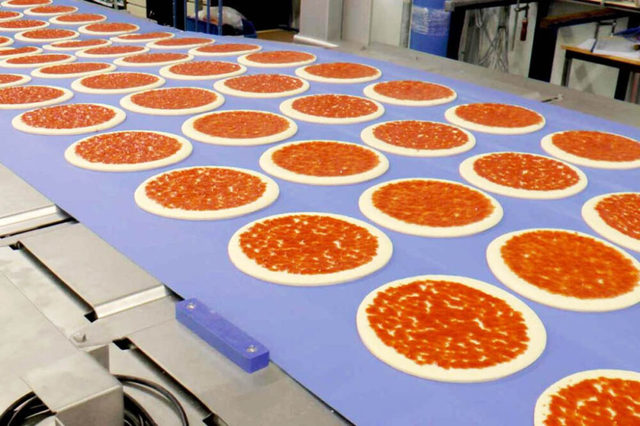

-Multispot tomato topping unit
-Retracting unit
-Dough scrap return into the mixer
-Digital control, Siemens S7, OP27

Oven:
-Baking chamber 39.37″ x 708″ (1000 X 18000 mm)
-Baking time, between 1 and 3 minutes
-Stone plate belt

Spiral cooler:
-Ambient cooling
-Infeed at 35.43″ (900 mm)
-Outfeed at 126″ (3200 mm)
-Full stainless steel execution, stainless steel belt
-CIP cleaning system for belt wash

Decoration line:
-3 pc. strewers for cheese, ham and vegetables
-1 pc. slicer for cutting and topping of salami, ham and cheese, equipped with 4 separate cutting heads and pendulum movement
-1 pc. spice strewer
-1 pc. crème doser
-Pressing roller
-Water sprayer

Spiral freezer:
-NH3 freezer
-Stainless steel execution
-Stainless steel belt
-CIP belt cleaning
-2 evaporators, 5 fans

Packaging:
-Packaging machine for foil bags
-Shrinkage tunnel
-Metal detector
-Horizontal carton packaging machine

Freezer plant:
-5 pc. GEA Grasso single stage screw compressor packages
-GEA Ecoflex PHE- type evaporator

Electrical: 3 X 400 V – 50Hz

*This Line Is Located In Iran*
