Product Description

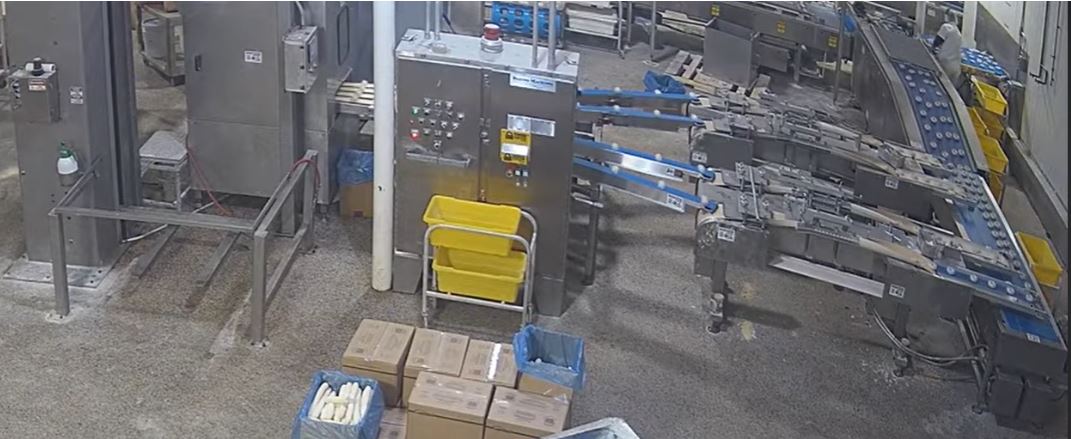

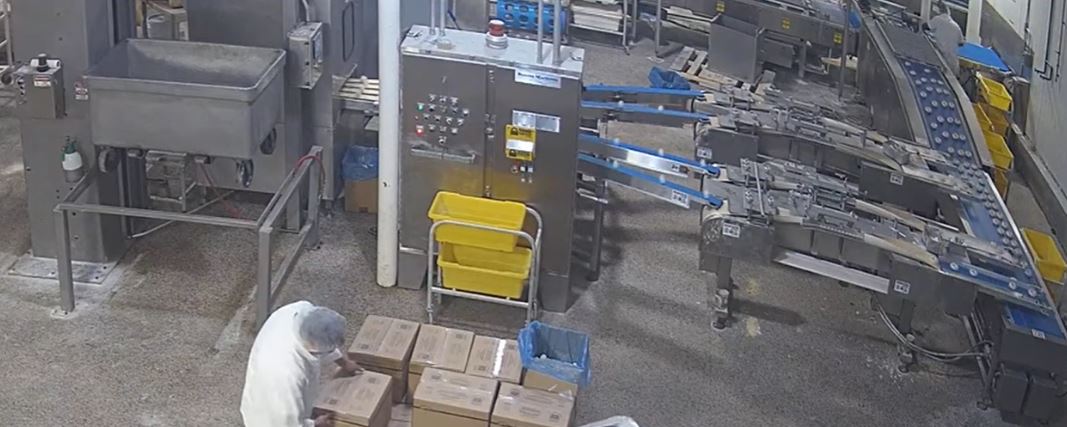

This Line Consists Of:
1) Dough Hopper/Chunker
1) 4 Row Divider
1) 4 Row Spreading Spreading Belt Conveyor
2) Dual Lane Bagel Formers
1) Indexing Conveyor
1) Reciprocating Conveyor
2) Free Standing Control Panels

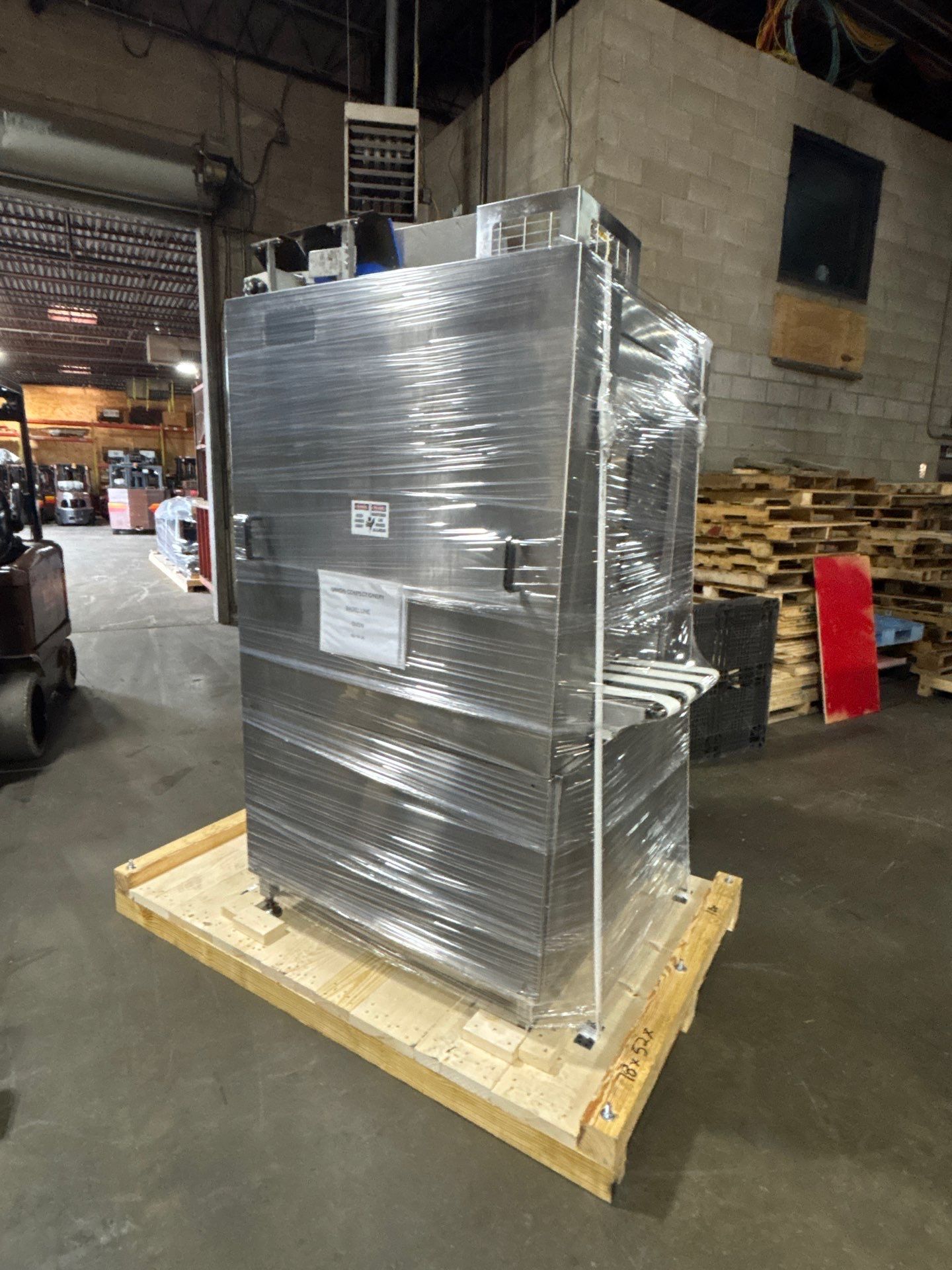

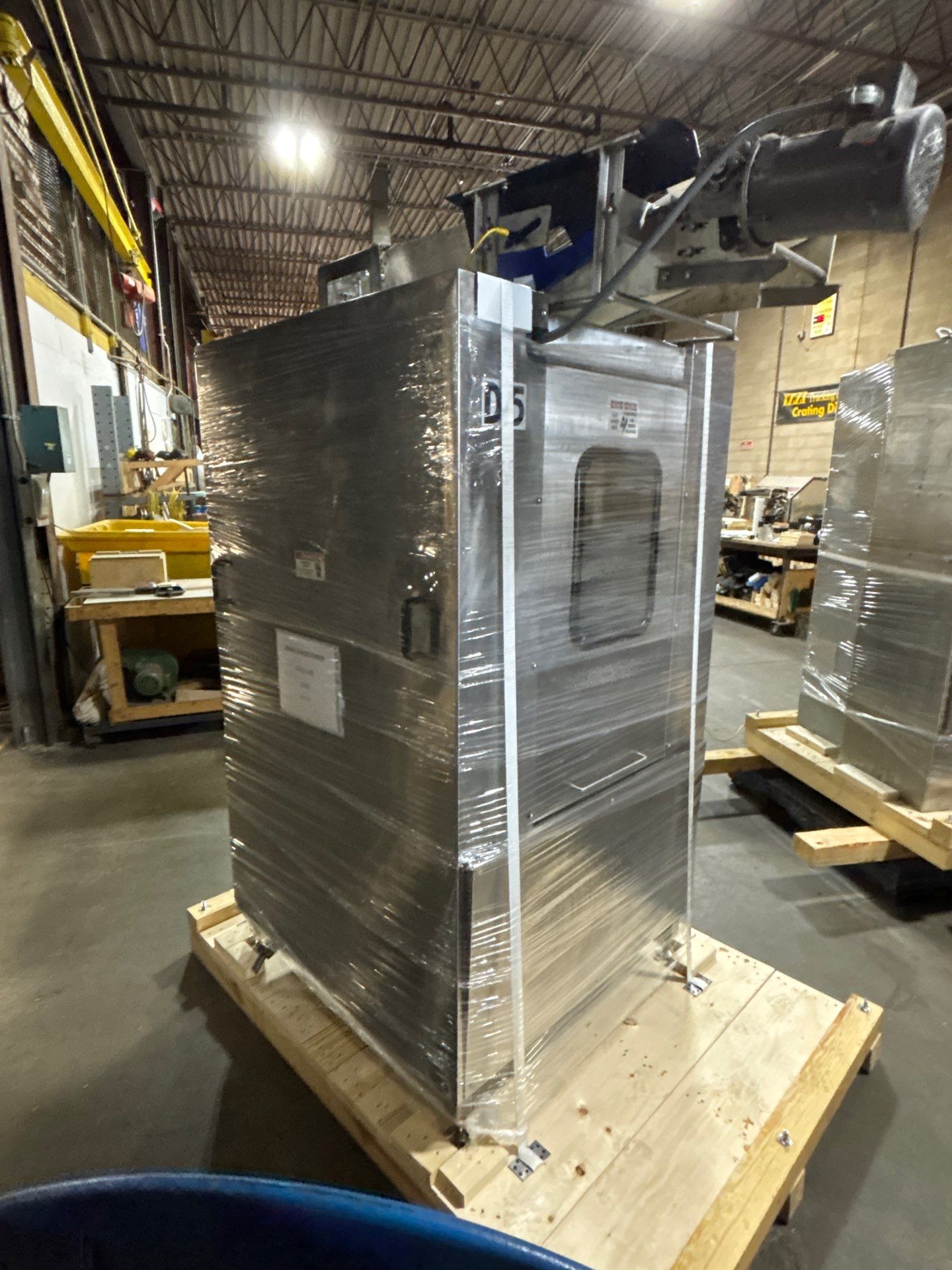

Dough Hopper/Chunker:
Teflon Coated Hopper
Hopper Dims: 55″L x 42″W x 37″D
With Spare Hopper
O.A. Dims: 67″L x 54″W x 140″H
Baking Machines Star Wheel Chunker At The Base Of The Hopper
Machine Mounted Control Panel
Allen Bradley Panelview C600
Feeds Directly In To The Dough Divider
Mounted On A Square Tubular Stainless Steel Frame

ABI Dough Divider:
Model: 150168
S/N: 150806
4 Row
Individual Belt Width: 2-7/8″
Individual Belt Length: 48″
Top Mounted Infeed Belt
Infeed Belt Width: 9″
Infeed Belt Length: 36″
Internal Poly Rollers
1) 4 Row Cutting Roller
O.A. Dims: 74-1/2″L x 43-1/2″W x 88″H
Stainless Steel Construction
On 4 Manually Adjustable Leveling Feet

Spreader Belts:
O.A. Dims: 104-1/2″L x 73″W x 34″H
4 Row
Individual Belt Width: 3-5/8″
Individual Belt Length: 104-1/2″
Manually Adjustable Leveling Feet
Mounted On A Square Tubular Stainless Steel Frame
Stainless Steel Construction

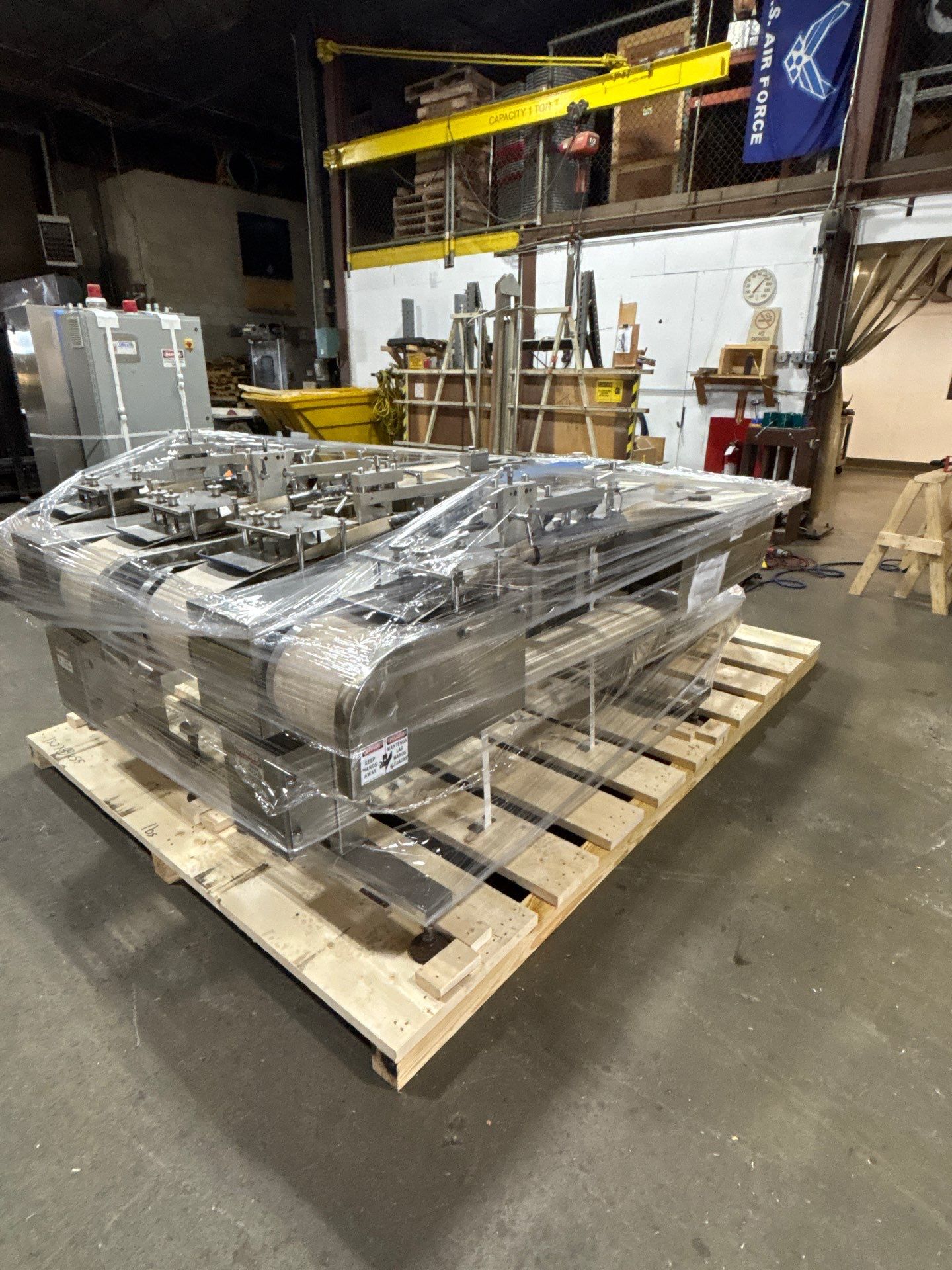

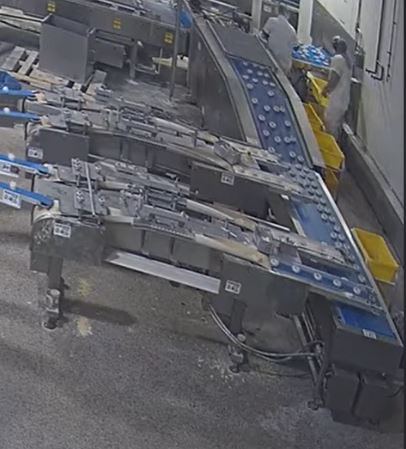

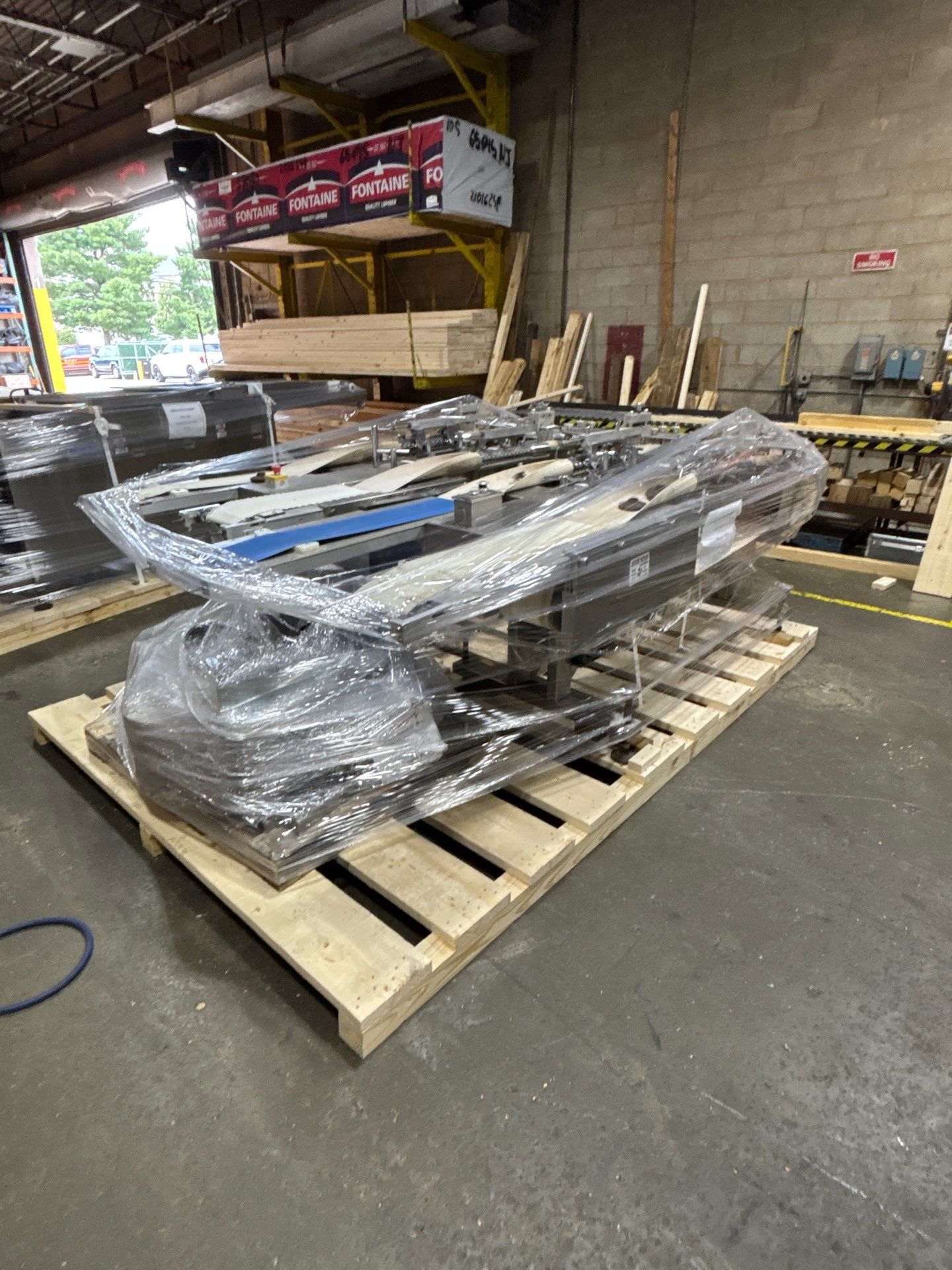

2) Empire Dual Lane Bagel Formers:
For A Total of 4 Formers
Belt Width: 9″
Belt Length: 80″
Manually Adjustable Pressure Plates On Each Former
Mandrel Position Is Manually Adjustable On Each Former
Discharge Conveyor On The End Of Each Former:
Former 1 Discharge Conveyor Length: 35-1/2″
Former 2 Discharge Conveyor Length: 41″
Former 3 Discharge Conveyor Length: 26″
Former 4 Discharge Conveyor Length: 31-1/4″
Comes With 3 Different Size Mandrels And Tubes:
Set 1: (Currently On The Machine) 1-3/4″ Diamter Mandrel W/ 3-1/2″ Diameter Tube
Set 2: 1″ Diameter Mandrel W/ 2-1/8″ Diameter Tube
Set 3: 2″ Diameter Mandrel W/ 3-1/2″ Diameter Tube
On Manually Adjustable Leveling Feet

Baking Machines Indexing Conveyor:
Model: BM-IC-24
S/N: BC24069
Belt Width: 23″
Belt Length: 128″
Belt Height From Floor: 31-1/4″
Mounted On A Square Tubular Stainless Steel Frame
Stainless Steel Construction

Baking Machines Reciprocating Conveyor:
Model: BM-BRC-20000
Belt Width: 23″
Infeed Height From Floor” 29-3/4″
Discharge Height From Floor: 40-1/4″
Stainless Steel Safety Guard Over Reciprocating Section
Manually Adjustable Leveling Feet
Mounted On A Square Tubular Stainless Steel Frame

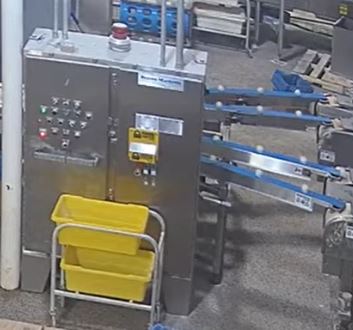

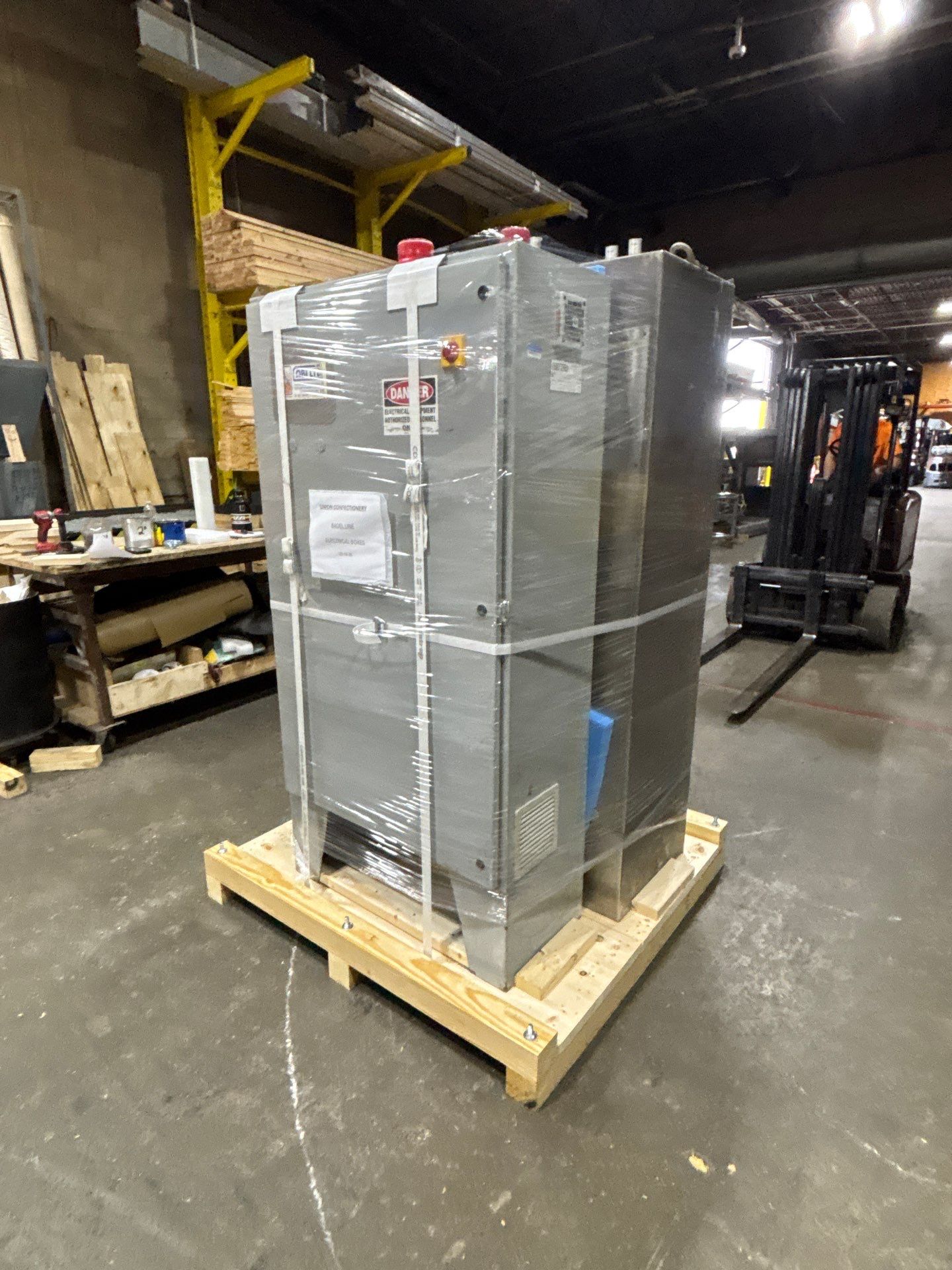

2) Free Standing Control Panels:
O.A. Dims:
1) 19″D x 36-1/2″W x 75″H
1) 25″D x 48″W x 81″H

**This Line Does Not Include The Trough Lift.**

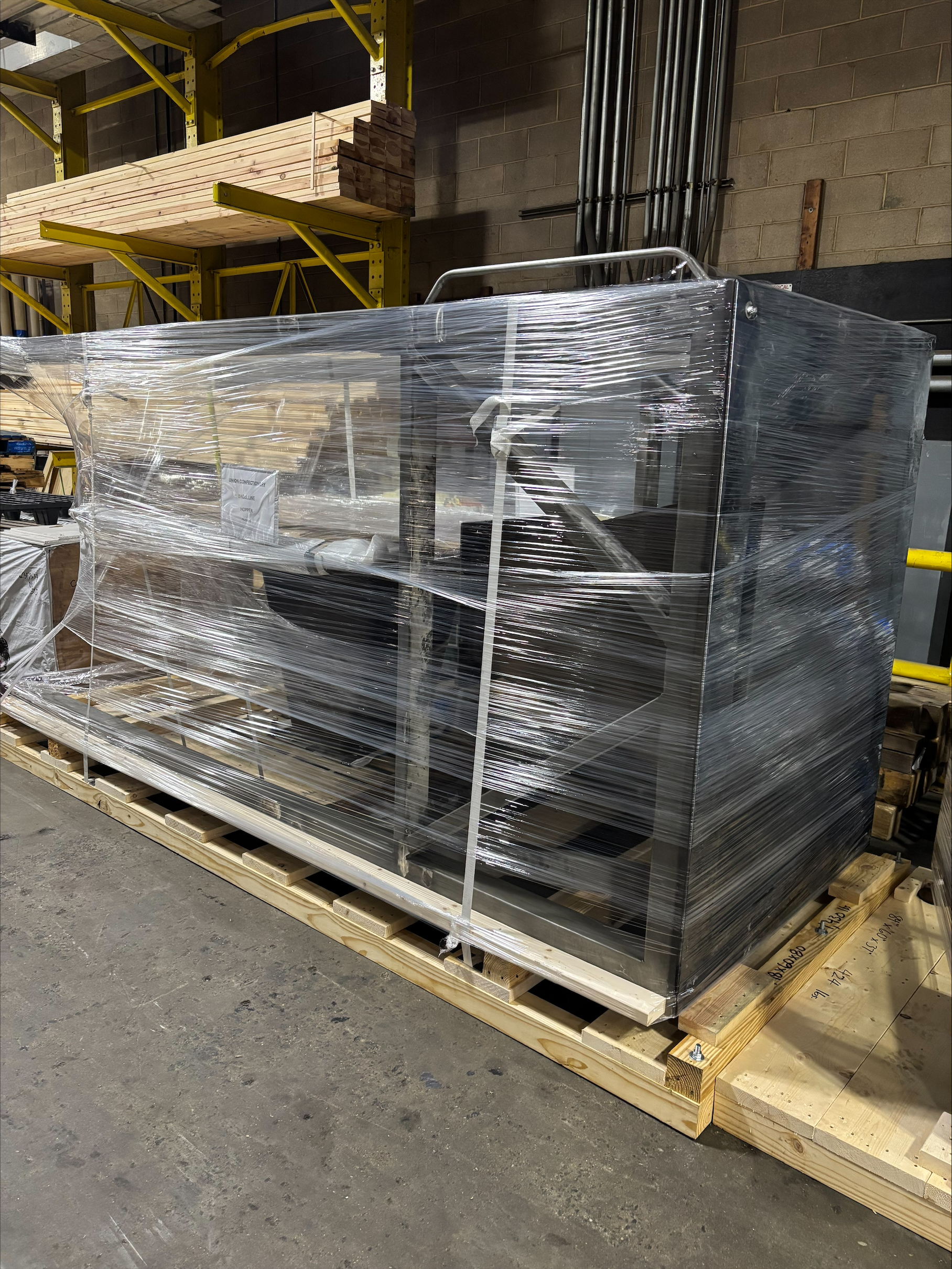

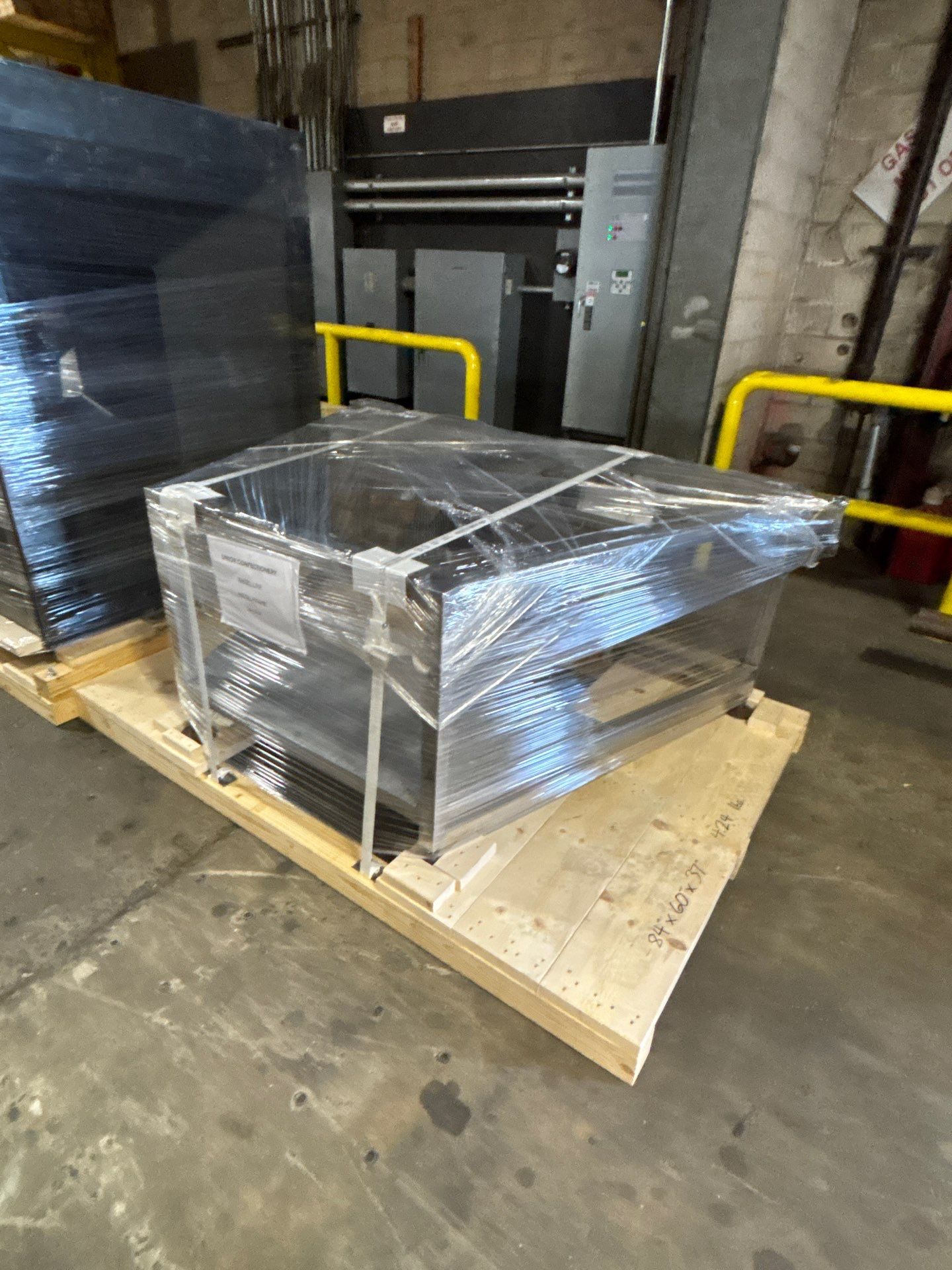

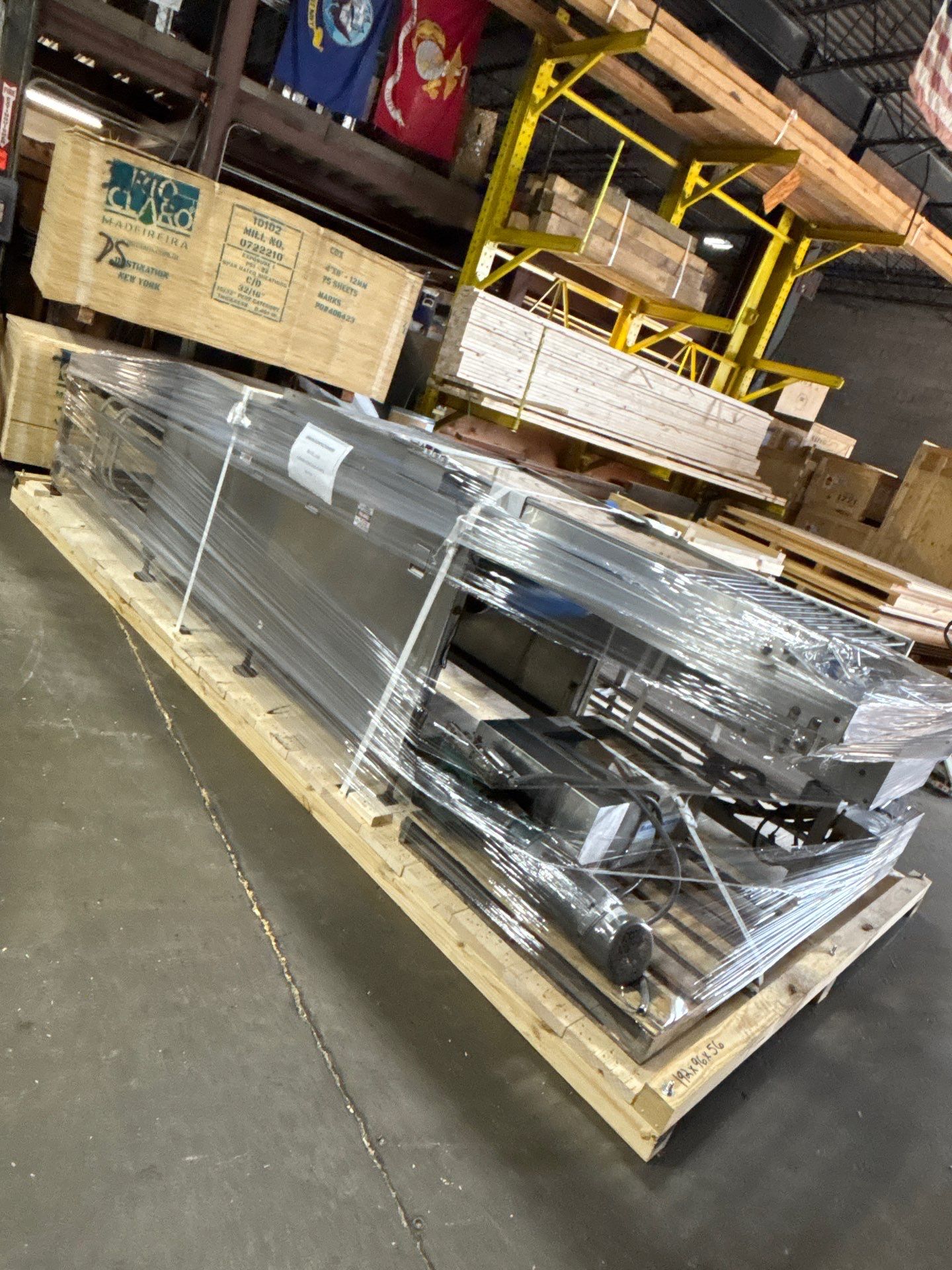

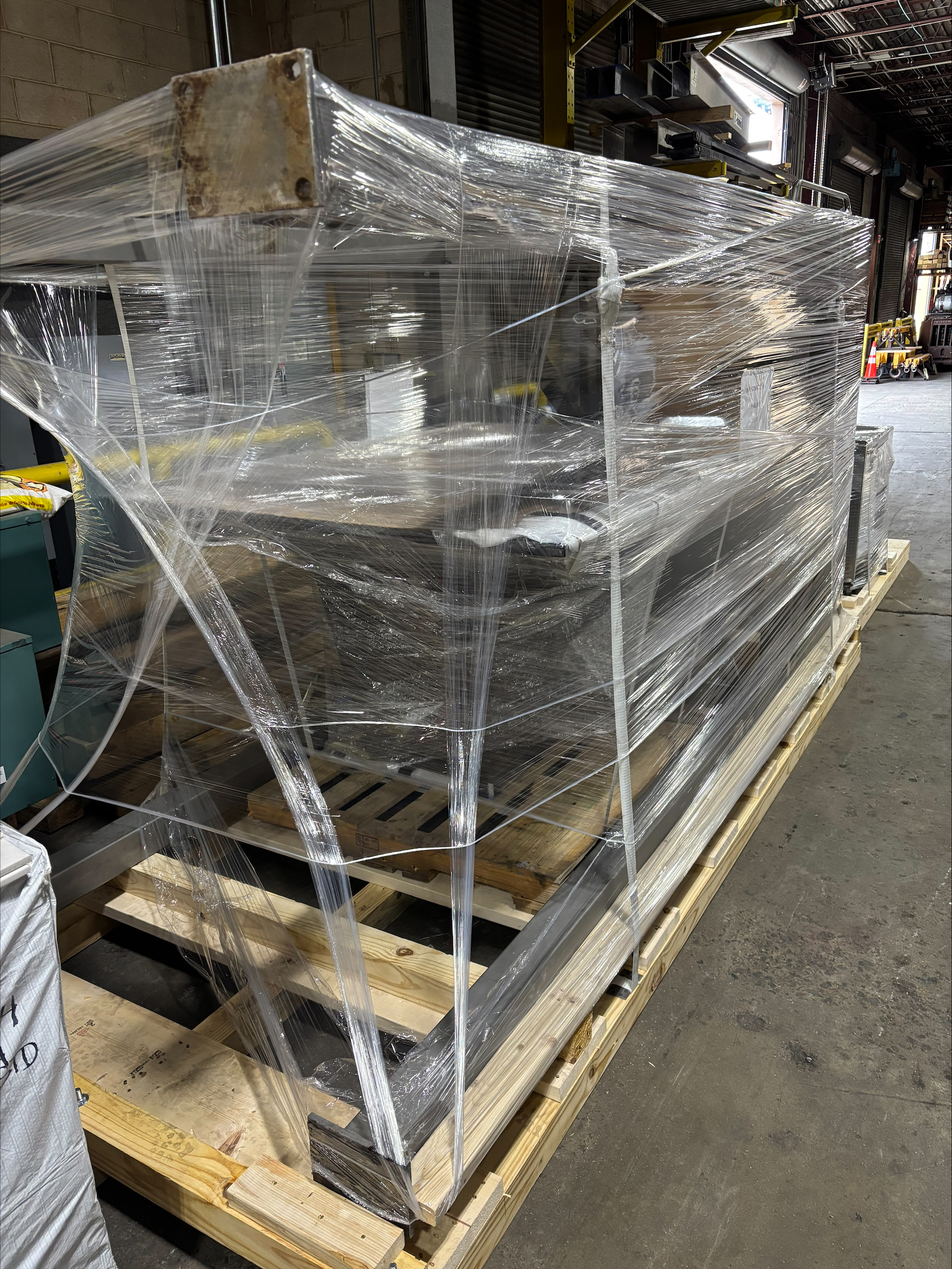

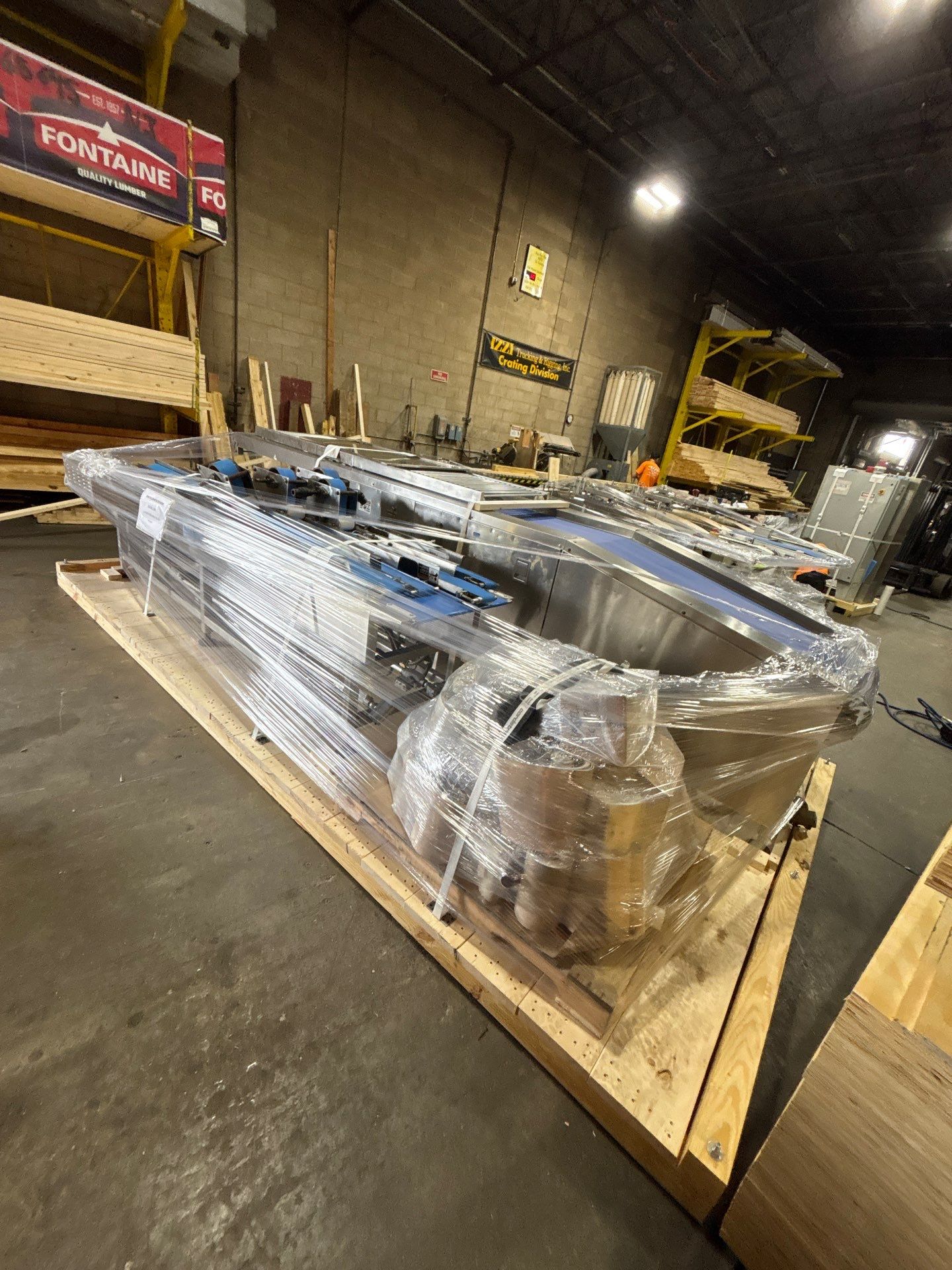

**This Line Was Removed Directly From Production In Good Working Order. This Line Will Sell As-Is And Is Palletized And Ready To Ship.**

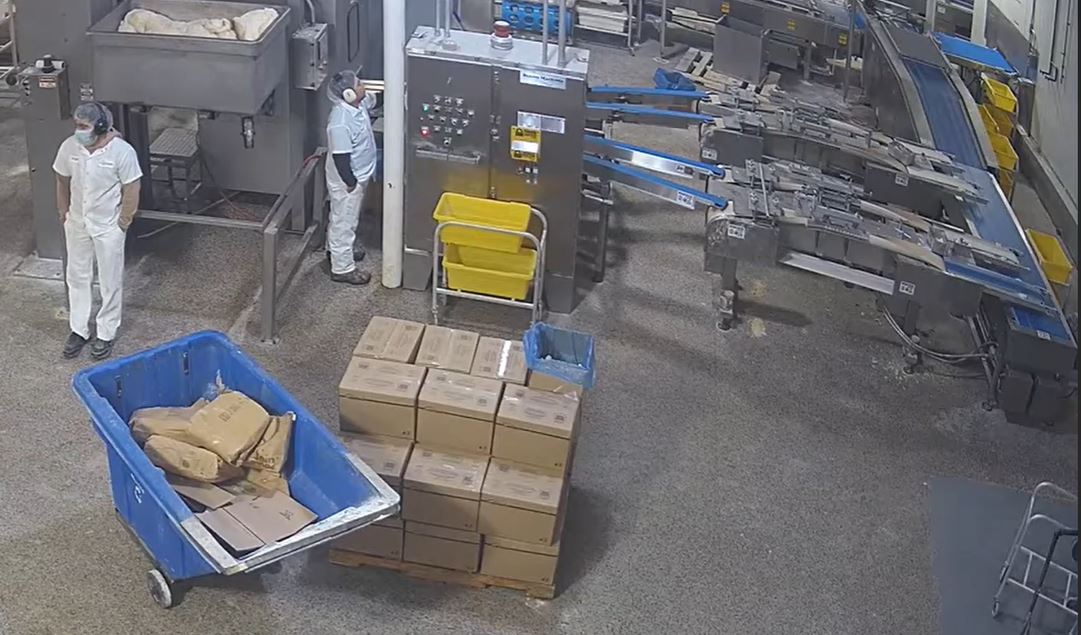

**To See A Video Of This Line In Action, Please See The Videos Tab.**
